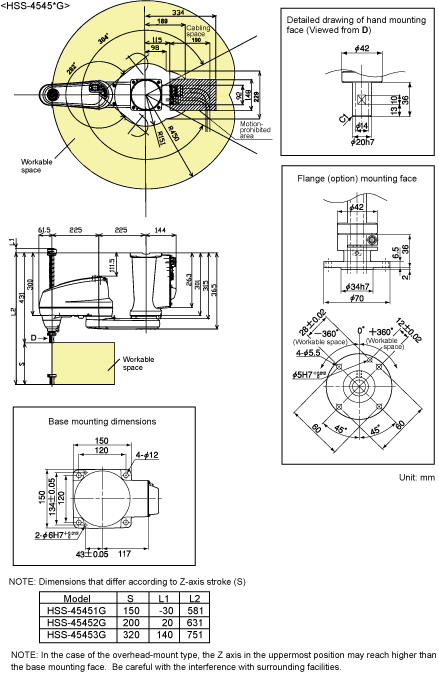

HSS-4545*; Arm Length 450 mm, Overhead-mount, Standard Type
 |
Please refer to this if the figure is not clear.（PDF：766KB）
