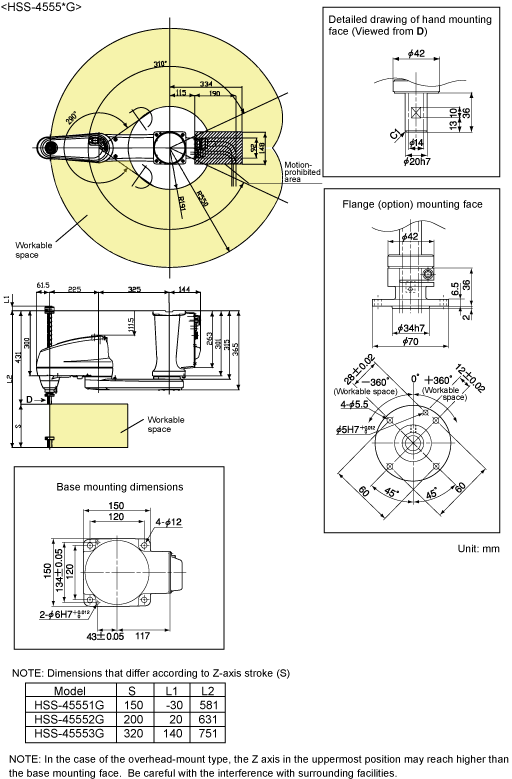

HSS-4555*; Arm Length 550 mm, Overhead-mount, Standard Type
 |
Please refer to this if the figure is not clear.（PDF：791KB）
