I/O Conversion Box and Accessories

The table below lists the I/O conversion box and its accessories.

Component	Remarks
I/O conversion box	The I/O conversion box shall be installed in apparatus with four screws across a RC8 controller. Connect this box to the RC8 controller with accompanying Mini I/O connection cable and Parallel I/O connection cable.
Mini I/O connection cable	Interfacing between the Mini I/O connector on the I/O conversion box and the Mini I/O connector on the controller.
Parallel I/O connection cable	Interfacing between the PARALLEL I/O connector on the I/O conversion box and the connector on the optional parallel I/O board added.
4 screws (M3 x 6)	To be used for securing the I/O conversion box to the controller.
4 hex. socket-head bolts (M4 x 12)	This part is to fix the I/O conversion box to apparatus.

The I/O conversion box is installed in apparatus across the controller, as shown below.

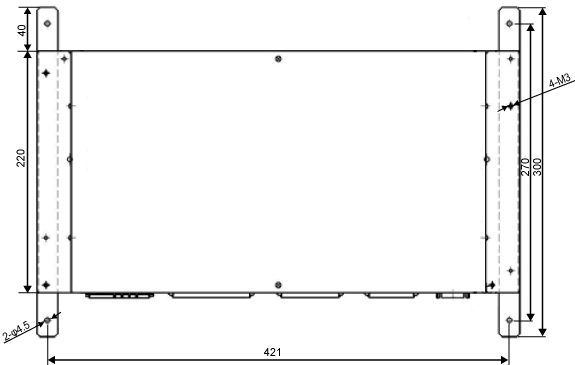

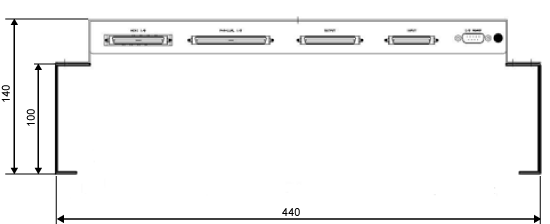

Dimension

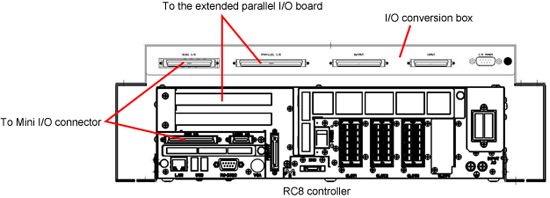

Connection diagram
