Overview of Device

Smart TP is an input and operation device for programming and teaching. All operations except the external automatic operation can be performed by the Smart TP.

Function

The following shows the functions of the Smart TP.

Programming and teaching function

Function to input command and store memory of robot arm position. Specify program and input command step by step.

Also change, delete and copy the command and robot arm position.

Execute and confirm the program.

Operating and controlling functions

Functions to turn on/off motor, start and stop automatic robot run, and perform manual operation.

Display function

Display program contents, program execution status, execution step number, the current position of robot, and error message if there is an error.

Name of Each Part of Smart TP

The following shows the name of each part of Smart TP.

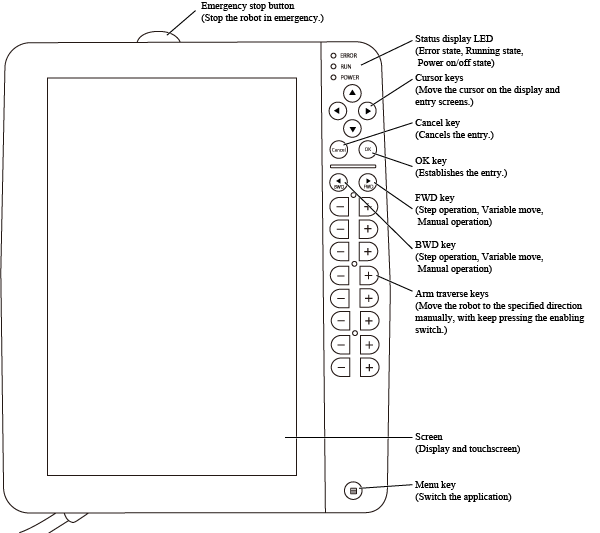

Front

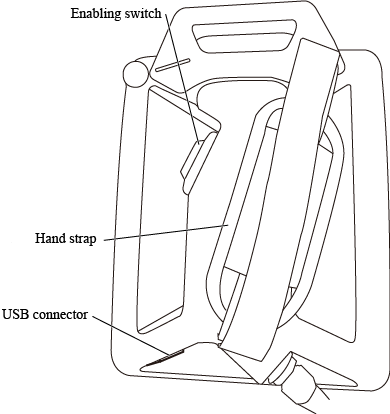

Back
