Error Log

Record error logs for the errors that are occurred in the controller.
Also you can check the error logs in the past on the Smart TP.

1

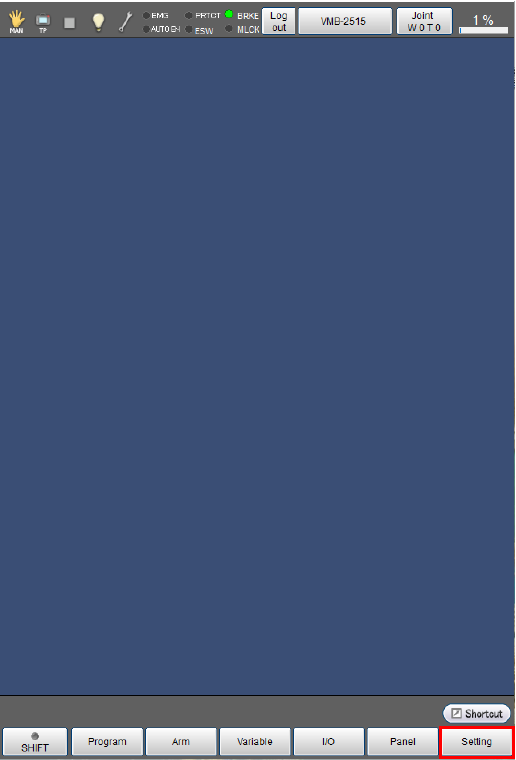

Press [F6 Setting].

2

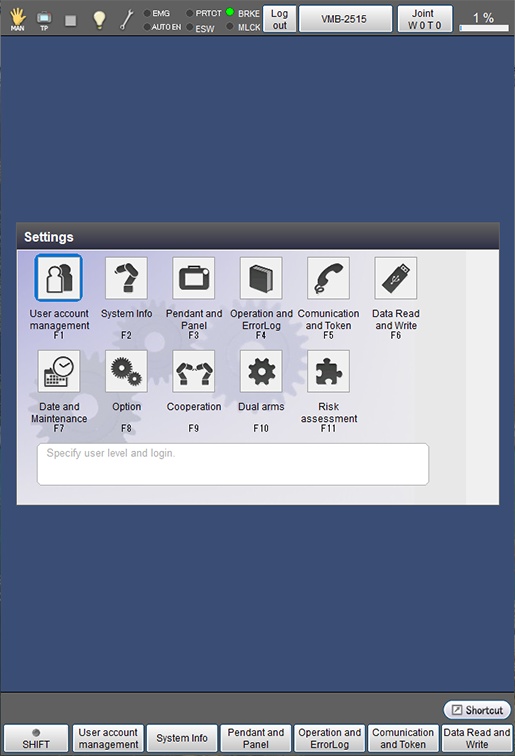

Press [Operation and Error Log] button.

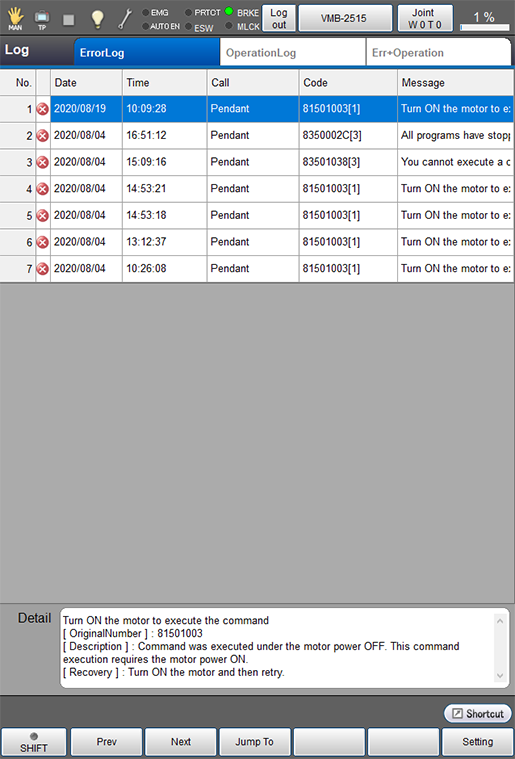

Error Log screen opens.
Pressing the cursor key on the Smart TP will move the cursor to the up and down so that you can check the log.

Available function keys
[F1 Prev] Display the previous page of the currently displayed log information.
[F2 Next] Display the next page of the currently displayed log information.
[F3 Jump To]

Displays numeric keypad.

Enter the list No. of logs with numeric keypad, and press [OK] to display the log of the target list No.
[F6 Setting]

Display [Record error level setting] window.

Select error level to record as a log. Once pressed [OK], error log will be recorded at this set error level.
Record logs for all error levels when [Error level 0] is selected.
[F7 ClearLog]

Delete the registered log information.

Select the log information to delete, and press [OK] to delete the log.
