Variable Monitoring Function within the Program

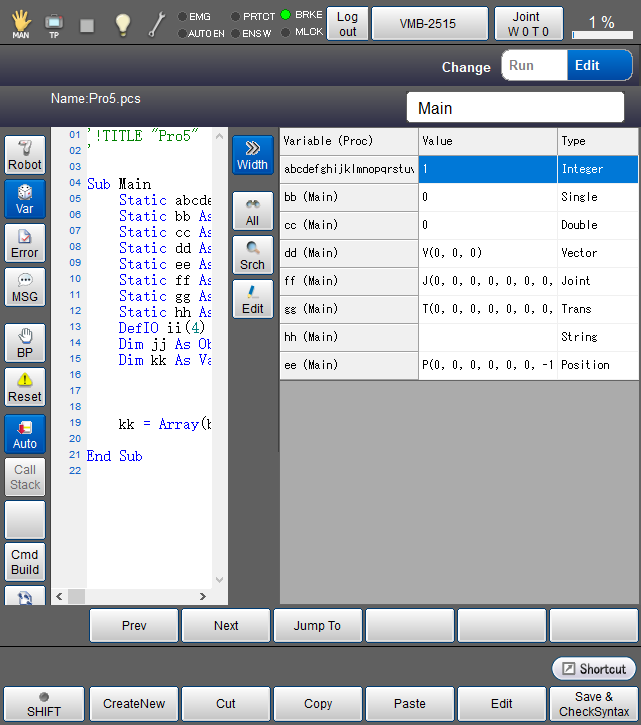

Display variable monitoring window within the program.

For the operation procedure, refer to "Operation Using Smart TP" in Basic of Robot Motion Creation.

Keys other than function keys
Var Display a variable monitoring window.
Width Switch the width of the variable monitoring display between two types.

Func

Line

All

Switch the display style of variable window within the program.
Func Display all the variables available within the procedure. (except for global variables)
Line Display variables used in current line. This displays global and local variables.
All Display all the static variables.
Srch Search variable names.
Edit

Edit variables.

If an array is displayed, elements of arrays are displayed by clicking this button.

For details about Variant array, refer to "Monitoring Variant array".
