Displaying Program List Window (Manual Mode)
Operation path : Basic screen - [F1 Program]
Display the registered program list display.

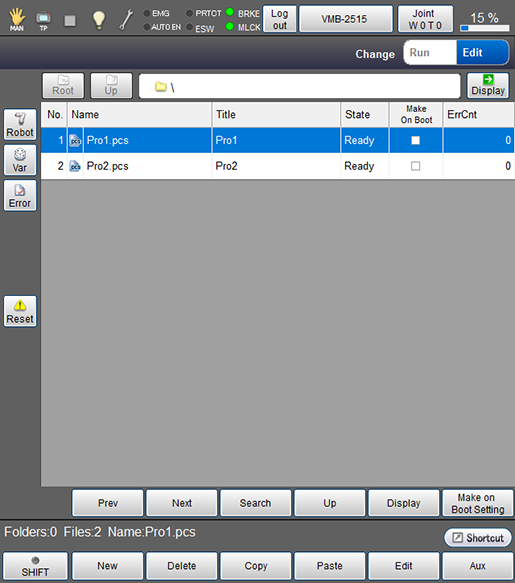

Press [F1 Program] when in manual mode to display the following [Program list] window.
Edit
| Available function keys | |
|---|---|
| [F1 New] (*1) |
Display the screen to create new program. Enter program name, and press [OK] to display contents of new program. The pre-prepared sample programs including "Pick & Place" and "Palletizing" can also be used. New folders and new header files are also created in the screen to create new program. |
| [F2 Delete] (*1) | Deletes the selected folder or file. |
| [F3 Copy] (*1) | Copy the selected file. |
| [F4 Paste] (*1) | Paste the copied file. |
| [F5 Edit] |
Select program in the program list, and press [Edit] to display contents of selected program. Then, edit the program. For details, refer to "Editing Contents of Folder and Program". |
| [F6 Aux] |
Change settings associated with start and stop of program and supervisory task. For details, refer to "Displaying and Setting Program Auxiliary Functions ". |
| [F9 Encrypt/Decrypt] (*1) |
Encrypt and decrypt the selected file. For detailed information, refer to "Program Code Encryption" in command reference. |
| [F10 FileLock/Unlock] (*1) |
Prevent users from editing specified program. Use a password to lock/unlock. For detailed information, refer to "Lock Function" in Basic of Robot Motion Creation. |
| [F11 Rename] (*1) | String input window will be displayed. Enter new file name, and press [OK] to change the file name. |
| [F12 Check Syntax] (*1) | System message to select either "This program only" or "All PRE-CHECK-enabled in the project" will be displayed. Select either of them, and press [OK] to execute the syntax check for the target program. |
Start Menu
| Available function keys | |
|---|---|
| [F4 CycleStart] (*2) | Single-cycle start of the program being executed. |
| [F6 StepStart] (*2) | Execute step feed start of the selected program. |
| [F7 Reset Program] (*2) | [Reset Program] window opens. Select either "Only this program" or "All programs", and press [OK] to reset the target program. |
| [F9 Priority] (*2) | System message to set the priority will be displayed. Select either of lowest, low, normal, high, and highest, and press [OK] to change the priority of the selected program. |
| [F11 Display] | Display contents of selected folders and files. For details, refer to "Editing Contents of Folder and Program". |
| Keys other than function keys | |
|---|---|
| Robot |
Display 3D image of the robot. For information about operation keys, refer to " Displaying Current Position Information and 3D Image of Robot ". Button turns blue while robot button is pressed. |
| Var |
Display a static variable monitoring window. For details, refer to "Static Variables Monitoring Function". |
| Error (*3) | Display syntax error log information. |
| Reset | [Program reset] window opens. Select either "Only this program" or "All programs", and press [OK] to reset the target program. |
| Root | Move to the highest folder hierarchy. |
| Up | Move to the folder hierarchy that is one higher than the current one. |
| Path | Enter path in the displayed file path input screen, and press [OK] to move to the specified file path. |
| Display | Display contents of the selected folder and file. |
| Prev | Display the previous page of the currently displayed program list. |
| Next | Display the next page of the currently displayed program list. |
| Search |
Display file name search window. Enter file name, and press [OK] to search the entered file name. |
| Up | Move to the folder hierarchy that is one higher than the current one. |
| Display | Display contents of the selected folder and file. |
| Make On Boot Setting (*3) |
A Make On Boot Setting-enabled program is compiled at the time of controller startup.
For the operation procedure, refer to "PRE-CHECK of the Program" in Basic of Robot Motion Creation. |
(*3) : It can be used only in the editing window.
