Displaying Vision Menu

Operation path: Top window - [F8 Vision]

Display the Vision menu.

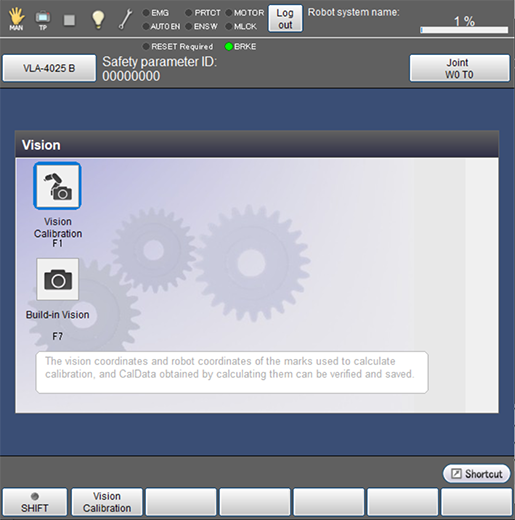

Pressing [F8 Vision] will display the following [Vision] window.

Available function keys
[F1 Vision Calibration]	Perform Vision calibration with numerical input. For details, refer to "Visual Calibration Procedure by Numerical Input" in Description of Each Function. This key appears only when the currently logged-in account is granted user permission for "Programming" or "Maintenance".
[F7 Build-in Vision]	Display pictures of the Buld-in Vision. This key is displayed after the license registration of EVP2.

Available function keys

[F1 Vision Calibration]

Perform Vision calibration with numerical input. For details, refer to "Visual Calibration Procedure by Numerical Input" in Description of Each Function.

This key appears only when the currently logged-in account is granted user permission for "Programming" or "Maintenance".

[F7 Build-in Vision]

Display pictures of the Buld-in Vision.

This key is displayed after the license registration of EVP2.
