Command Input Supporting Function

Overview

With this function, some commands are automatically entered.Since this function automatically inputs necessary parameters at once, you can complete programming without writing whole command lines.

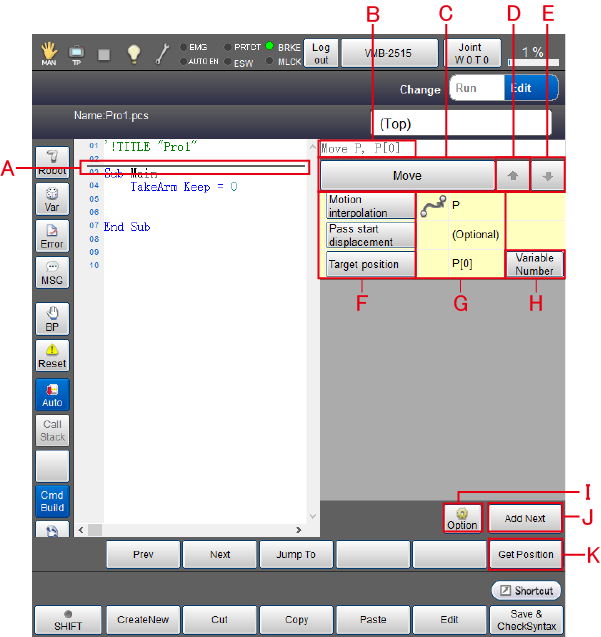

Command Input Window

Symbol	Item	Description
A	Command adding cursor	This specifies a line where a new command will be added. To move this cursor, touch the screen directly or use the up-and-down arrow keys.
B	Command string area	Display currently selected command and parameters with a character string.
C	Command selection button	Move to the command list selection window.
D	Undo	Display the previous page on the command list.
E	Redo	Display the next page on the command list.
F	Parameter button	Pressing a parameter button will display detailed settings of the parameter.
G	Parameter value	Display currently set parameter values.
H	Parameter values setting button	This button appears when a parameter requires a value input. With displayed numeric keypad, enter a value, and then press [OK] button to confirm the value.There are two buttons. Variable number button Enter any given variable number. Input number button Enter any given number.
I	Option button	Display the options when [Add Next] is selected with the Approach or Move command.Select from the following three and press the [OK] button. Do not get the position and increment the variable number. Only add a line of command strings and do not get the position and increment the variable number. Get the position and increment the variable number. When adding a line of command strings, get the position into the specified variable and increment the specified variable number. Only increment the variable number. When adding a line of command strings, increment the specified variable number.Do not get the position.
J	Add Next	Add a currently set command and parameters' character strings to the command adding cursor position.
K	Get Position button	Read the coordinates of the current robot position. (*1)

*1: This allows you to obtain the current position into a variable, also if immediate values are used, write the current position's value over the values written in a program.

For variables
If variables are used, values are stored in the variables.
```
    Move P, P[0]
```
It is impossible to obtain the current position if any of variable, function, or macro definition is used as an index of P-type, J-type, or T-type.
```
    Move P, P[aaa] 'Impossible to obtain the position
```

For immediate values
If values are written in a command, these values will be replaced by the current position's values.
```
    Move P, P( 446.7207, 275.725, 329.036, 180, -0.0122849, -148.3163, 5 )
```
It is impossible to obtain the current position if any of variable, function, or macro definition are used as elements of P-type, J-type, or T-type.
```
    Move P, P( aaa, 275.725, 329.036, 180, -0.0122849, -148.3163, 5 ) 'Impossible to obtain the position
```

Procedure

The following shows how to use the command input supporting function.

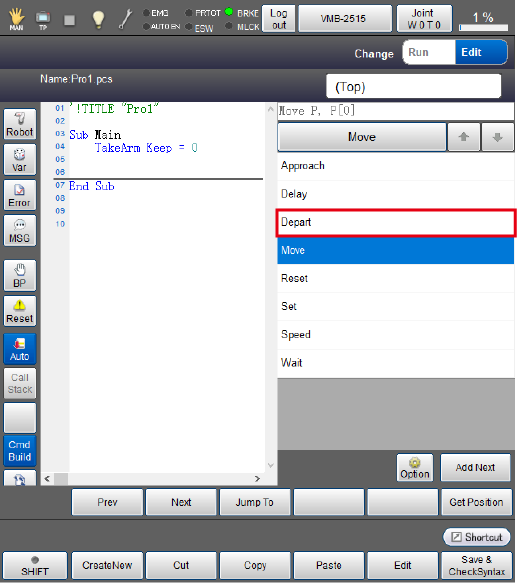

Select a command.

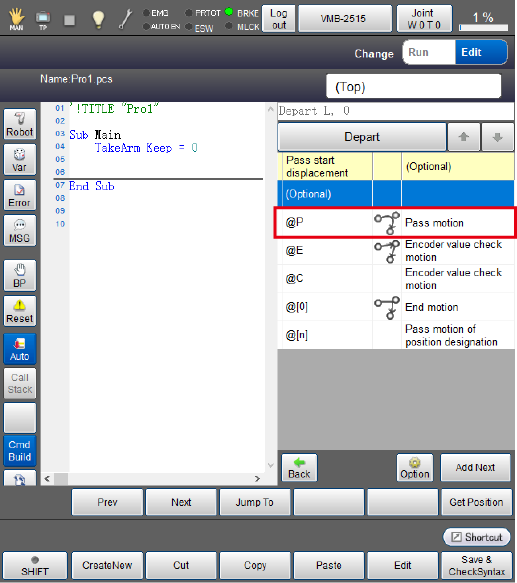

Select parameters to set, and input values.
Insert a command.

Example

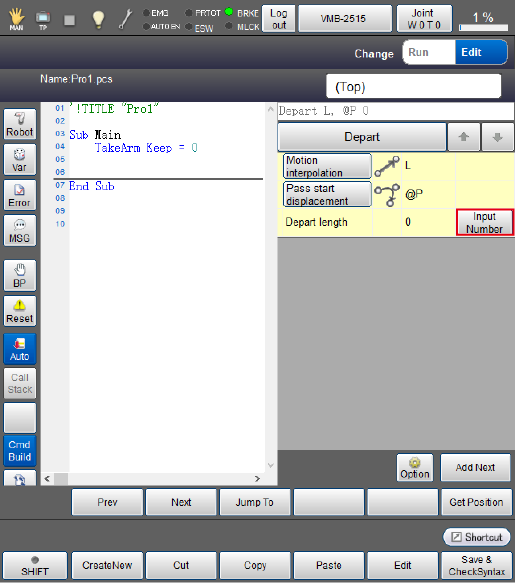

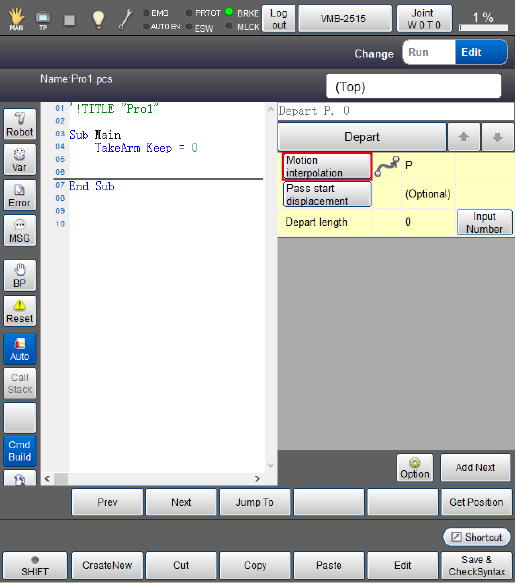

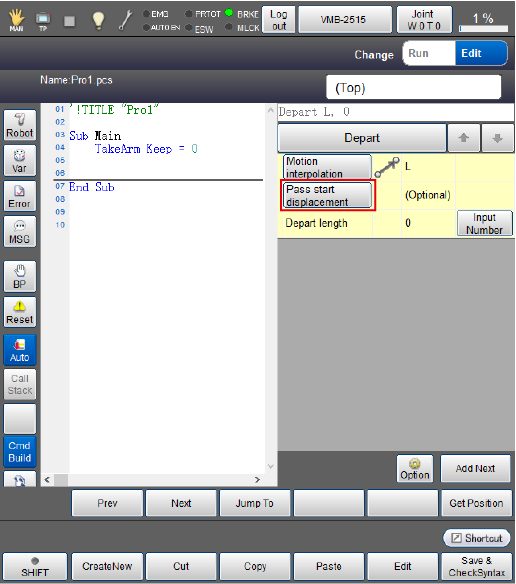

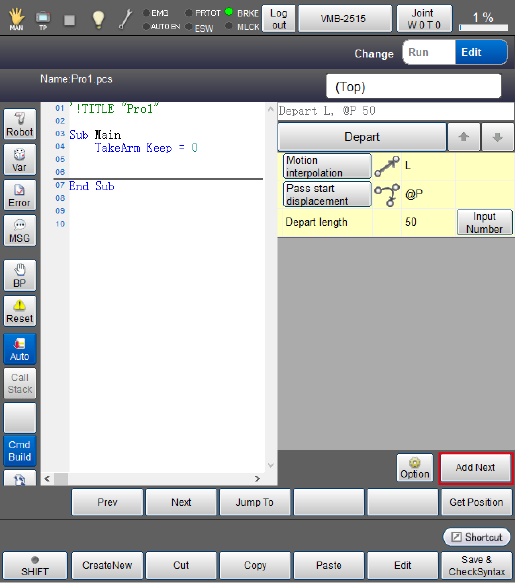

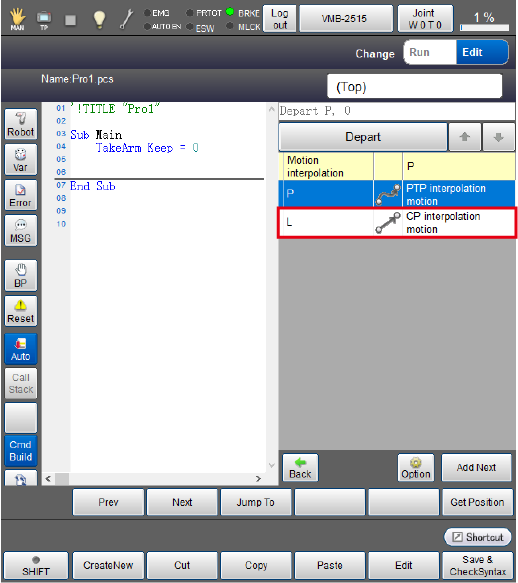

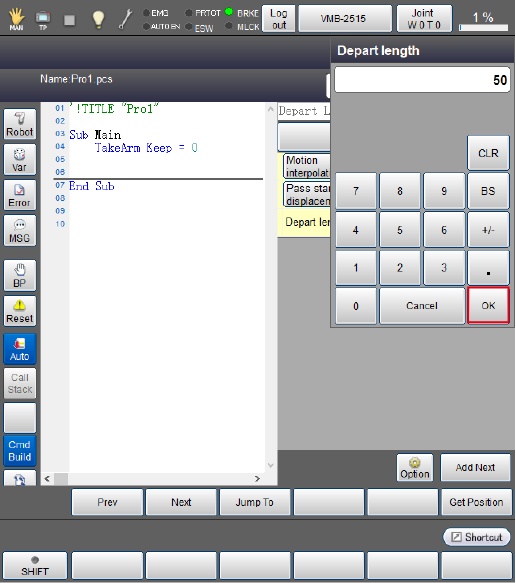

In this example, "Depart L, @P 50" is inserted in the seventh line of the program.

1

Operation path : Basic window - [F1 Program] - program file to edit

Display the [Program editing] window of a program to edit, and press the [CmdBuild] button on the left of the window.

2

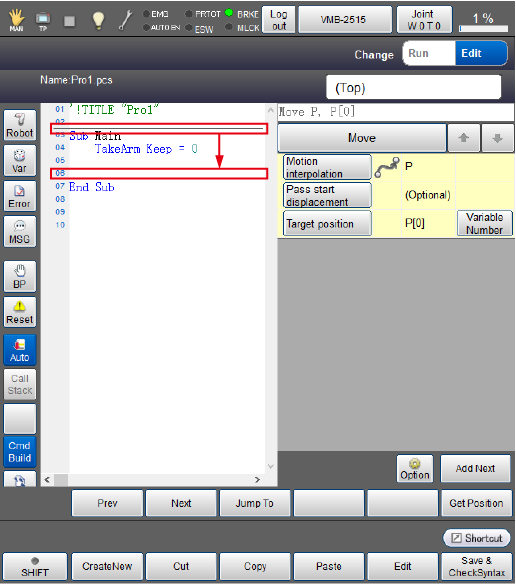

Select a line where you will insert a command. Move the command adding cursor to the sixth line of the program by touching the screen or using the up-and-down-arrow keys.
