Grounding the Robot Unit

The earth terminal of the robot unit has a screw (M8×16). Use this screw to ground with a wire of 5.5 mm² or more.

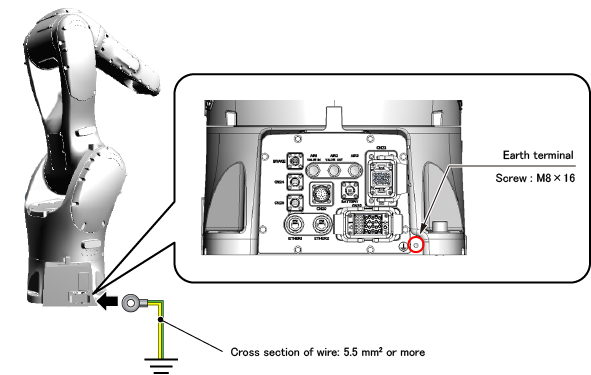

For the position of the earth terminal, refer to the following figure.

Use a dedicated grounding wire and grounding electrode. Do not share them with any other electric power or power equipment such as a welder.
