Assembling Procedure to 6th Axis

1

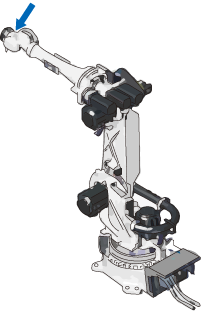

Remove the protective components, from the vicinity of notch (A) and the mounting part of the jig for CALSET (B).

2

Place and screw the jig for 5th and 6th axis CALSET (C) to the mounting part (B).

3

Assemble the dial gauge holder to the hole on the jig.

4

Insert the dial gauge (D) to the holder.

Push the dial gauge in for about 2.5 mm.

This completes assembling.
