Dial Gauge for CALSET with Jig for 5th and 6th Axis

This is a set that the jig for 5th and 6th axis CALSET is included with the dial gauge that can perform CALSET more accurately.

When using the dial gauge, you can perform CALSET of each robot axis more accurately.

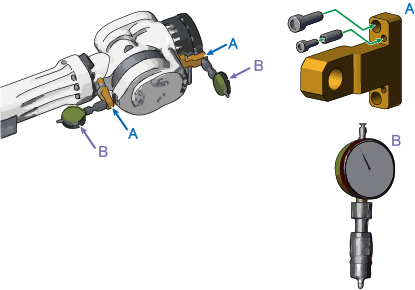

This is used in combination with a dial gauge holder that is screwed into the specific place on each robot axis.

After using the dial gauge, remove it from the robot and keep it.

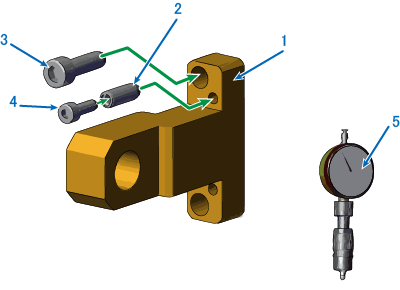

Components

1. Jig for 5th and 6th axis (quantity : 1)
2. Parallel pin ø6 × 16mm (quantity : 2)
3. Hexagon socket head bolt for fixing M6 × 20mm (quantity : 2)
4. Hexagon socket head bolt for extracting parallel pins M4 × 12mm (quantity : 2)
5. Dial gauge (quantity : 1)
