Dial Gauge for CALSET

When using the dial gauge, you can perform CALSET of each robot axis more accurately.

Components

1. Dial gauge holder (quantity : 1)
2. Conical ring nut (quantity : 1)
3. Probe (quantity : 1)
4. Dial gauge (scale: 0.01mm) (quantity : 1)

Usage

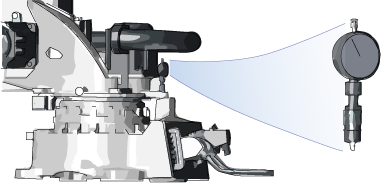

It is used by assembling a dial gauge at the CALSET position of each robot axis.

For more details, refer to "CALSET Using a Tool".
