1st-axis Mechanical End Change

At the time of delivery from the factory, mechanical ends are set in the VMB series robots so that the stroke of the 1st axis is ±170°.
Changing the mechanical ends of the 1st axis by adding mechanical stoppers is called a mechanical end change.

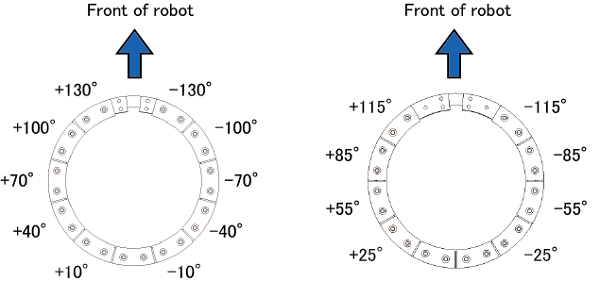

When you use adjustable mechanical stoppers (option), you can limit the stroke of the 1st axis in units of 15° in both directions.

Change the position of the adjustable mechanical stopper according to the desired motion range.

• Upper limit : +10° ～ +130°
• Lower limit : -130° ～ -10°

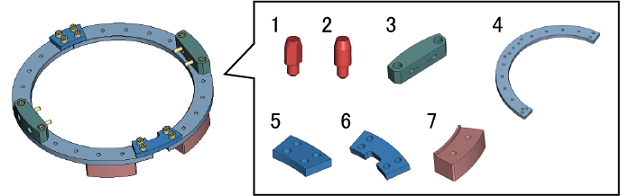

Components

1. Dowel pin (diamond-shaped) (quantity : 2)
2. Dowel pin (round-shaped) (quantity : 4)
3. Adjustable stopper plate 1 (quantity : 2)
4. Adjustable stopper plate 2 (quantity : 2)
5. Adjustable stopper fixing plate 1 (quantity : 1)
6. Adjustable stopper fixing plate 2 (quantity : 1)
7. Stopper for adjustable stopper (quantity : 2)
8. Hexagon socket-head bolt M12 × 45, trivalent chromate (quantity : 12)
9. Hexagon socket-head bolt M12 × 30, trivalent chromate (quantity : 8)

Mounting Procedure

1

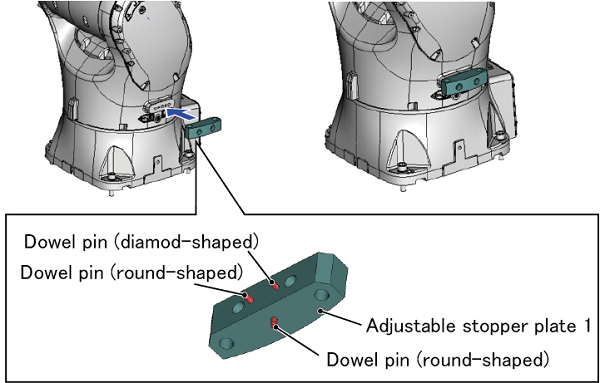

Insert the dowel pin (diamond-shaped) and dowel pin (round-shaped) into the adjustable stopper plate 1 and fix in the position of the figure below.

2

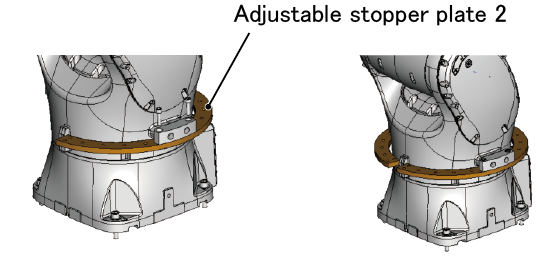

Temporary tighten the adjustable stopper plate 2 to the adjustable stopper plate 1 that has been fixed in STEP1.

Temporary tighten it to the opposite side in the same way.

3

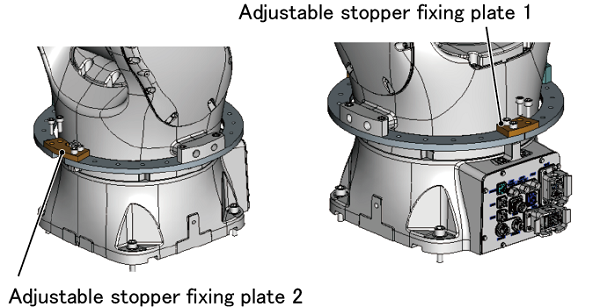

By using the adjustable stopper fixing plate 2, fix the adjustable stopper plate 2 that has been temporary tightened in STEP2. For the opposite side, fix it using the adjustable stopper fixing plate 1.

4

Firmly tighten the bolts that have been temporary tightened in STEP2.

5

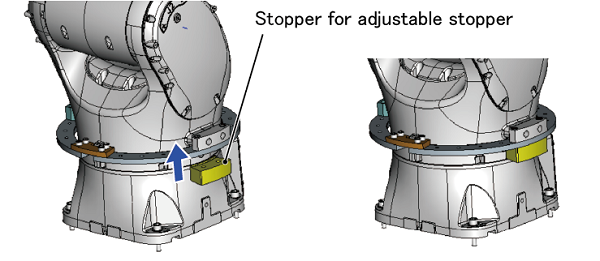

Fix the stopper for adjustable stopper in the desired position.

There are screw holes in units of 15°. Adjust the mounting position of the stopper for adjustable stopper as needed.

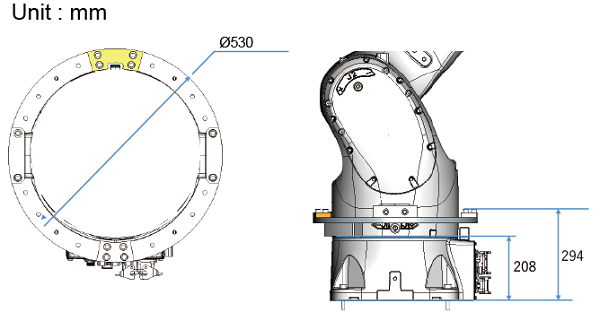

Outer Dimensions
