Robot Controller Setting

Set parameters of the robot controller with WICNAPSIII.

1

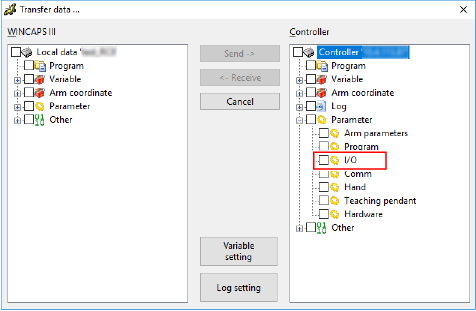

Transfer "I/O" data from the robot controller to WINCAPSIII. If WINCAPSIII has already received robot controller's I/O data, go on to the next step.

For details on how to transfer data from robot controller to WINCAPSIII, refer to "Data Transfer". To show "I/O" data, expand "Parameter" in the Controller data list of the [Transfer data] window. (see the figure below)

2

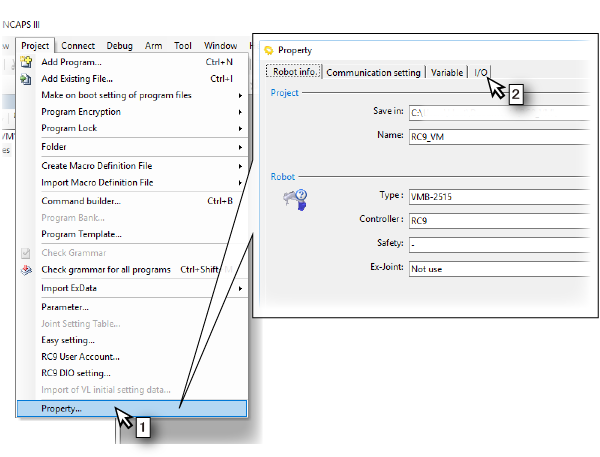

Open the setting window of the field network slave terminal parameters.

1. From the [Project] menu, select [Property].
2. On the [Property] window, click the [I/O] tab.

3

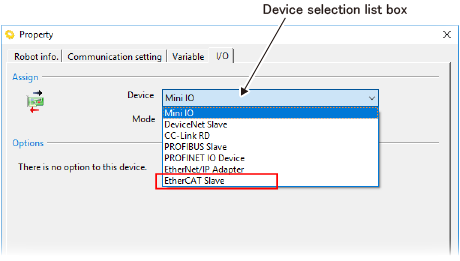

If you added a field network slave terminal into an already existing robot controller, change the device.

From the [Device selection list box], select a field network slave terminal you have just added.

4

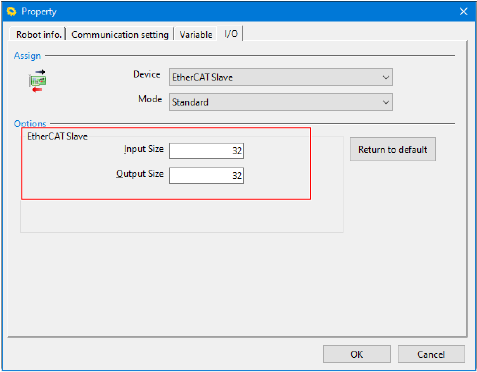

For about the size of IO, refer to “How to Calculate I/O Points of User I/O".  I/O can be added or removed by two bytes; this will determine the maximum number of I/O.

5

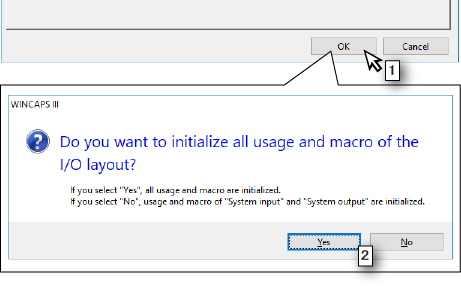

1. Click [OK] button.
2. A message box that asks if you initializes the I/O allocation will appear. Click "Yes" or "No".

6

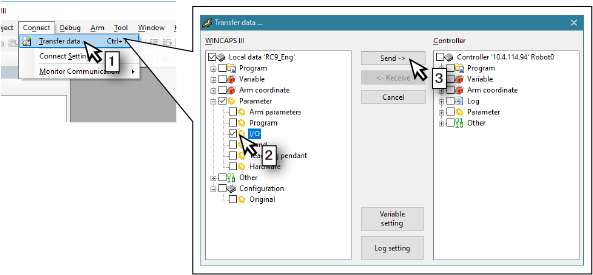

Send your setting data to the robot controller.

1. Select [Transfer data] from the [Connect] menu.
2. Open [Parameter] in the [WINCAPSIII] pane and select the check box of [I/O].
3. Click the [Send] button.

7

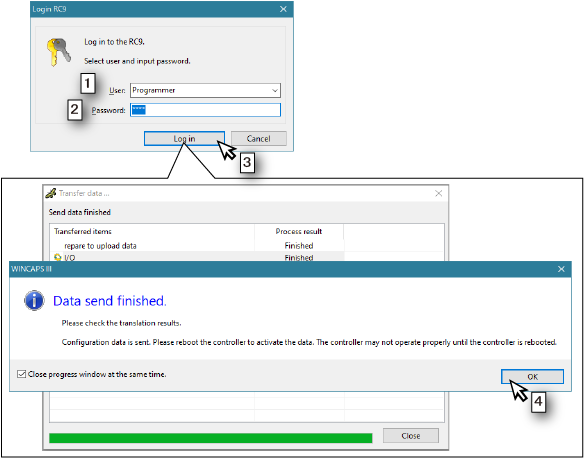

1. The [Login RC9] window will appear. Select the user accounts of user level "Programmer" or higher among users set in the robot controller.
2. Enter a password.
3. Click the [Log in] button.
4. When the window that finished sending data is displayed, click the [OK] button.
5. Reboot the power of the robot controller.

This completes the robot controller setting.
