WINCAPSIII

Connecting WINCAPSIII and MC9 Controller (IPC-equipped type) with a communication cable

For the data communication between WINCAPSIII (PC) and the MC9 controller, the PC and the controller must be connected with a communication cable. For cable connection, see the followings.

Ethernet connection

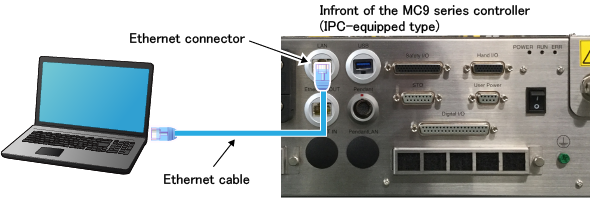

• One-to-one connection

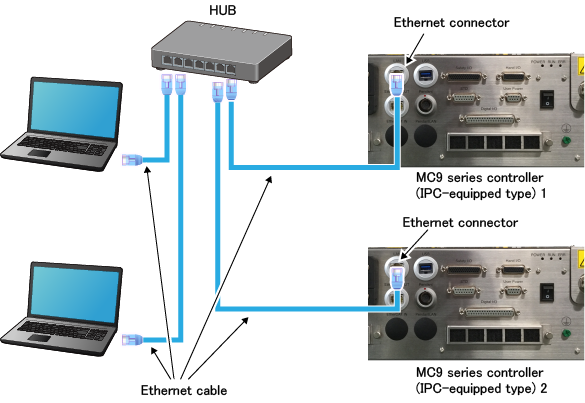

• N-to-N connection

Connecting WINCAPSIII and MC9 Controller (IPC-less type) with a communication cable

If you connect the MC9 controller (IPC-less type) with WINCAPSIII, you cannot connect the communication cable in the front panel of the MC9 controller (IPC-less type).

Please connect the LAN port which you have specified as [Local Area Connection] at the software installation of IPC prepared by customer.
