How to Connect the MC9 Controller to an IPC

To operate the MC9 controller (IPC-less type), connect the RC9 Firmware-installed IPC to the MC9 controller (IPC-less type) as shown in the connection diagram below.

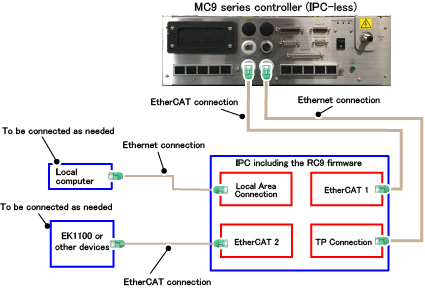

• Connection diagram
