Component parts
The controller protective box (MC9) and its accessories are shown below.

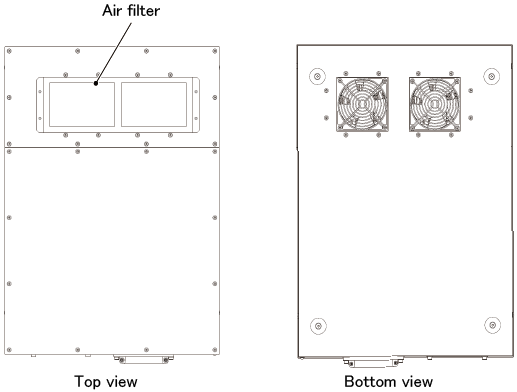

Controller protective box (MC9)
Accessory
| Part name | Quantity |
|---|---|
| Multi-outlet plate EMS10 | 1 |
| M5 screw | 6 |
| Sealing washer | 6 |
| M6 vis screw | 6 |
| Ground wire | 1 |
| M4 Round bare crimp terminal | 4 |
| Insulation cap | 5 |
| Banding band | 2 |
| Instructions about Protective Box | 1 |
Rubber packings for Multi-outlet plate EMS10
| Part name | Name printed | Application cable dia. | Shape | Pcs. (set) |
|---|---|---|---|---|
| P0 packing for EMS10 | EMSP0 | - |  |
7 |
| P4 packing for EMS10 | EMSP4 | φ4-φ6 |  |
4 |
| P6 packing for EMS10 | EMSP6 | φ6-φ8 | |
7 |
| P8 packing for EMS10 | EMSP8 | φ8-φ10 | |
1 |
| P10 packing for EMS10 | EMSP10 | φ10-φ12 | |
1 |
Option parts
| Part name | Part number |
|---|---|
| Air filter for RC8 protective box Light (*1) | 410053-016* |
| Stand set (RC8 controller protective box Light) (*1) | 410349-296* |
*1 : Parts name shows "RC8 controller protective box light" though, these are available for the controller protective box (MC9) as well.
