Component Names and External Dimensions

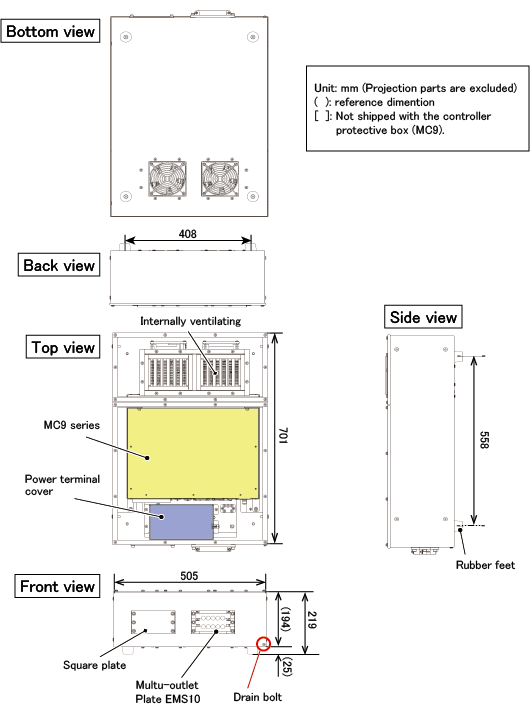

The figure below shows the names of the components of the controller protective box (MC9) and dimensions.
