HM/HMS-W, HM/HMS-W-UL Series (Dust- & splash-proof type)
Please refer to this if the figure is not clear.（PDF：138KB） |

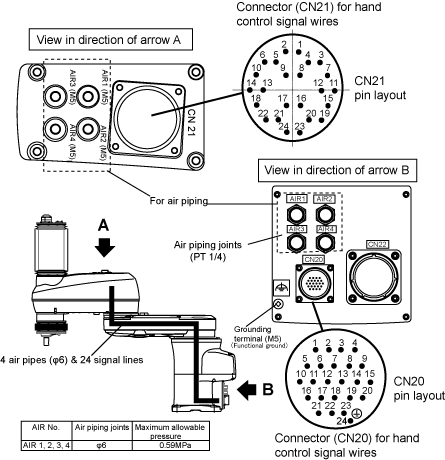

Note 1: Pins #1 to #24 on CN21 and those on CN20 are connected with each other. The maximum rated current per line is 1A. Note 2: Use the attached connector set for CN20 and CN21. |
| Connector set part No. | Part No. | Model and name | Appearance |
|
|---|---|---|---|---|
410889-0100 |
410877-0480 (for CN20) |
JL05-6A24-28S-(A72) (Straight plug) (Japan Aviation Electronics Industry Ltd.) |
|
|
410877-0490 (for CN20) |
JL05-24EB9B-(17)-(A72) (Cord clamp) (Japan Aviation Electronics Industry Ltd.) | Applicable wire diameter φ15 to 17 |
|
|
410877-0500 (for CN20) |
JL05-24EB9B-(21)-(A72) (Cord clamp) (Japan Aviation Electronics Industry Ltd.) | Applicable wire diameter φ19.5 to 21 |
||
410877-0470 (for CN21) |
EBSP2524M (Straight plug) (DDK Electronics, Inc.) |
|
||
