HM/HMS-UL Series (UL-Listed)
|
Please refer to this if the figure is not clear.（PDF：172KB） |
|

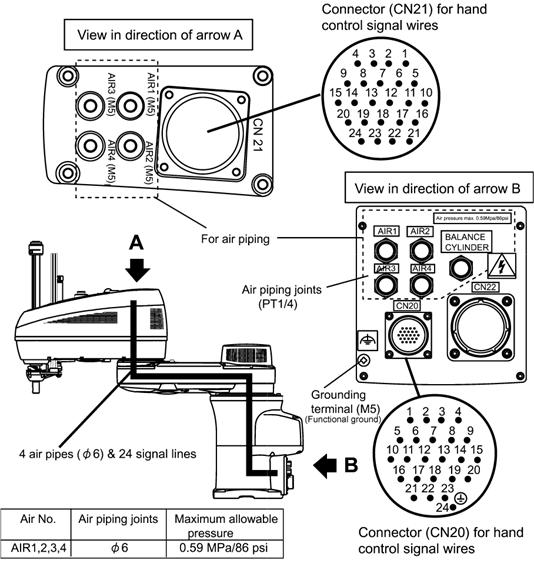

Note 1: Pins #1 to #24 on CN21 and those on CN20 are connected with each other. The maximum rated current per line is 1A. Note 2: Use the attached connector set for CN20 and CN21. |
| Connector set part No. | Part No. | Model and name | Appearance |
|---|---|---|---|
|
410889-0120 |
410877-0640 |
CE01-6A24-28SC(D69) (Straight plug) (DDK Electronics, Inc.) |
|
|
410877-0650 |
CE01-24BS-DS (Straight plug) (DDK Electronics, Inc.) |
||
|
410877-0660 (for CN20) |
CE3057-16A-1-D (Cable clamp) (DDK Electronics, Inc.) |
Applicable wire diameter: f15 to 19.1 | |
|
410877-0670 (for CN20) |
CE3057-16A-4-D (Cable clamp) (DDK Electronics, Inc.) |
Applicable wire diameter: f19.1 to 21 | |
|
410877-0450 (for CN21) |
JMSP2524M (Straight plug) (DDK Electronics, Inc.) |
