Configuration of the Conveyor Tracking System with Two Conveyors and Two or more Robots

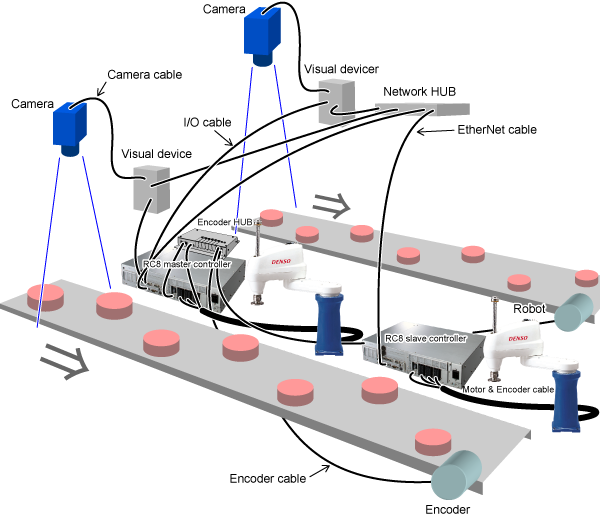

The example of the vision tracking system is illustrated below.



  • When you install two or more robots in one system, arrange these robots so as not to interfere each other.
  • The specifications for the master controller and slave controllers must be the same. All of them must have the conveyor tracking licenses, and must be set to Extended-joint-supported, and the same software version.

Wiring Diagram

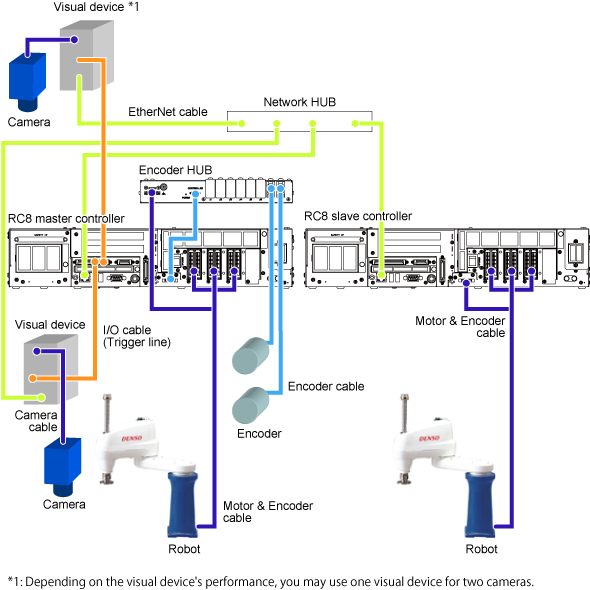

Wiring diagram is illustrated below.
Connect the encoder of the second conveyor to the master controller as well.
