VS-6556/6577 SERIES USER'S MANUAL
Specifications of the Robot Unit
Outer Dimensions and Workable Space of the Robot Unit
VS-6556-P10/P100 (Cleanroom type)
<< Prev
Next >>
SAFETY PRECAUTIONS
ROBOTS
START UP MANUAL
CONTROLLER & I/O
OPERATION GUIDE
PROGRAMMING
WINCAPSIII GUIDE
OPTION
ERROR CODE
PARAMETER LIST
OTHERS

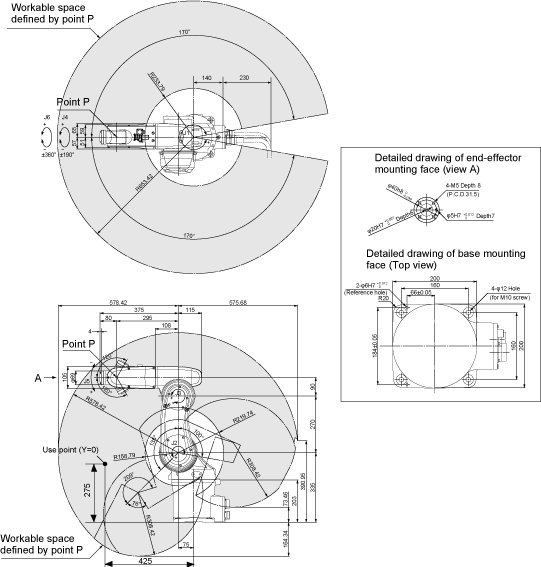

VS-6556-P10/P100 (Cleanroom type)
Please refer to this if the figure is not clear.（
PDF：341KB
）
