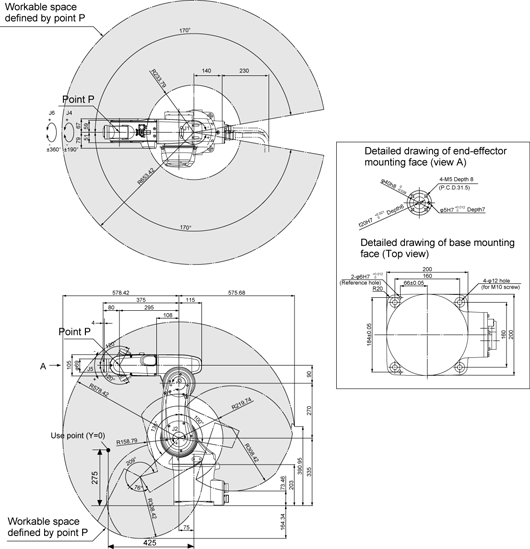

VS-6556-BP10/BP100 (Cleanroom type with brakes)
|
Please refer to this if the figure is not clear.（PDF：293KB）
