Setup

This section describes "IP address setting" and "Executable token setting" that are necessary to operate COBOTTA from Vision Edition-C.

The setup is done with "Remote TP/Virtual TP".

IP address setting

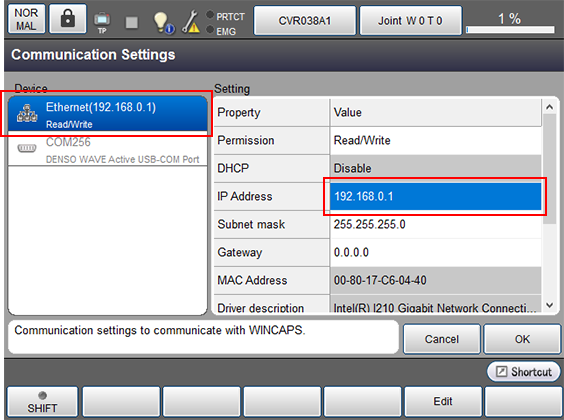

Open the Communication Settings window of Remote TP/Virtual TP.

On the Device area, select "Ethernet". Enter an IP address of your COBOTTA.

Operation path : Top window - [F6 Setting] - [F5 Communication and Token] - [F2 Network and Permission]

Executable Token Setting

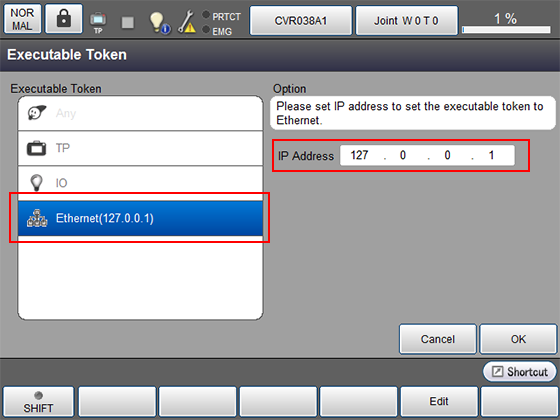

Open [Executable Token] window of Remote TP/Virtual TP.

On the Executable token area, select "Ethernet". In the IP address entry on the Option area, enter the IP address that you have just entered above step.

Operation path: Top window - [F6 Setting] - [F5 Communication and Token] - [F1 Executable Token]
