Connecting AC Adapter and AC Cable

1

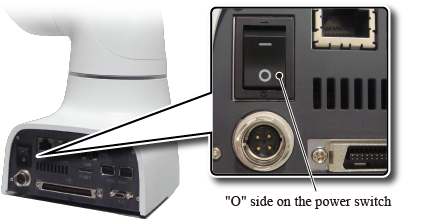

Set the power switch of COBOTTA to turn off the power (by pressing "O" side on the power switch).

2

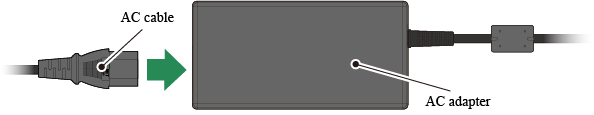

Connect the AC cable to the AC adapter. Be sure to push the AC cable connector in all the way.

3

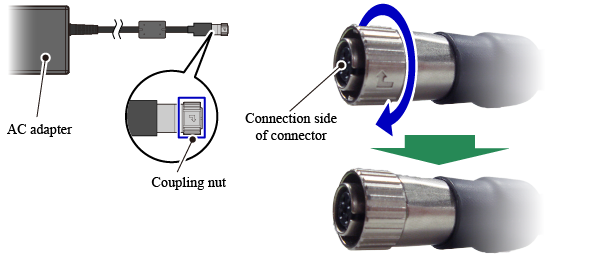

Turn the coupling nut of the AC adapter clockwise viewed from the connection side of the connector. Turn the nut until it stops.

4

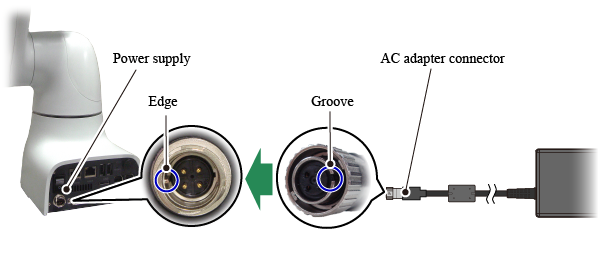

Connect the AC adapter to the power supply on COBOTTA. Insert the AC adapter connector while aligning the edge of the power supply with the groove of the connector. Be sure to push the AC adapter connector in all the way.

5

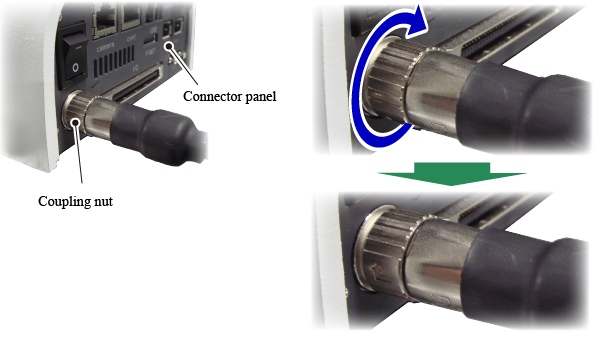

Turn the coupling nut of the AC adapter clockwise facing the connector panel. Turn the nut until it stops. The connector is locked.
If the connector remains unlocked, there is a risk of malfunction of COBOTTA due to contact failure.

6

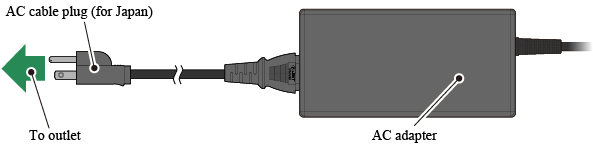

Insert the AC cable plug into an outlet.

Bundle cables to arrange them in appropriate length and fix them using tie wraps or other fixtures in a location so that people or carts do not step on nor trip over them.
If the AC adapter is left unfixed on the workbench, there is a risk of falling off. Fix it using tie wraps or other fixtures.
