Image Processing Application

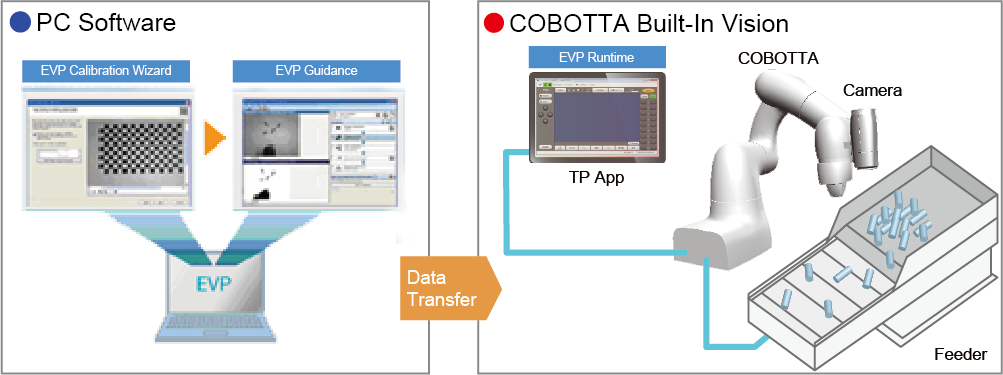

EVP is an image processing application that processes a pick-and-place operation image by using Denso Robot Vision (Denso Robot Imaging Library) (COBOTTA). Using EVP allows users to set the necessary parameters without programming. With the GUI on the computer, users select arbitrary image processing parameters suitable for the target workpieces, and then send the parameters to robots as "*.evp" files. Users then execute a "*.evp" file by using a robot program depending on the operation to be performed.

For derails, refer to "EVP Users Guide".

To use this application, you need to register "RC Vision (EVP)" license in your computer.

For derails about license, refer to "Software Installation".

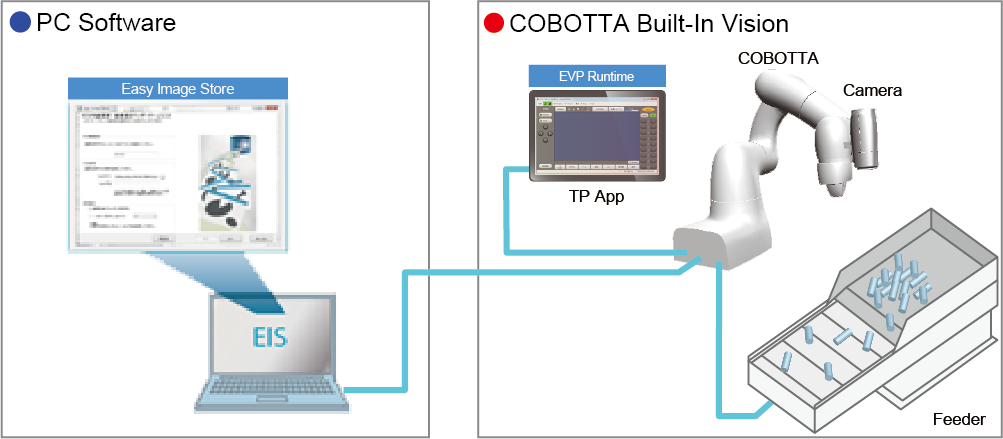

EIS is a software that stores COBOTTA-connected camera images into a computer. Images taken by Built-in Vision (EVP) are temporarily stored in COBOTTA, and reset by the COBOTTA power-off. By using EIS, these images are automatically stored in your computer as image files.

For derails, refer to "EIS Users Guide".

*1 To use EIS, you need to purchase the paid license "RC Vision (EIS)" and register it in your computer.
