ID : 4115

Displaying the result of I/O Bit Calculation

Operation path : [F4 I/O] - [[NumDisp] key on the I/O Monitor]

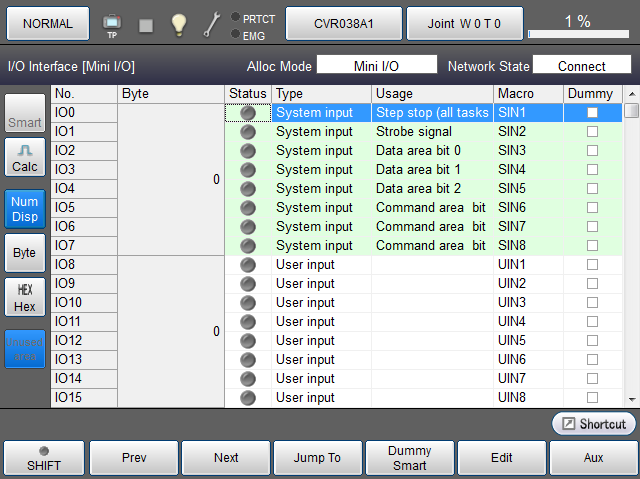

To display the I/O bit calculation result, press [NumDisp] key on the I/O monitor.

Keys other than function keys
[NumDisp]	Perform I/O bit calculation. When pressing the button, this function is enabled and the button turns blue color, and the I/O bit calculation result appears on the I/O monitor.
[Byte]	Switch the display style of I/O bit. （The display style of the I/O bit changes "Byte → Word → Short → Integer → Single → Byte (repeat this cycle)"). For more information about each display style, see "Operation of I/O Bit Calculation Function".
[HEX Hex]	Display the calculation result in hex number. When pressing the button, this function is enabled and the button turns blue color, and the I/O bit calculation result is displayed in hex notation. When the button is pressed once again, the display style is turned in decimal number.

Keys other than function keys

[NumDisp]

Perform I/O bit calculation.

When pressing the button, this function is enabled and the button turns blue color, and the I/O bit calculation result appears on the I/O monitor.

[Byte]

Switch the display style of I/O bit.

（The display style of the I/O bit changes "Byte → Word → Short → Integer → Single → Byte (repeat this cycle)").
For more information about each display style, see "Operation of I/O Bit Calculation Function".

[HEX Hex]

Display the calculation result in hex number.

When pressing the button, this function is enabled and the button turns blue color, and the I/O bit calculation result is displayed in hex notation.
When the button is pressed once again, the display style is turned in decimal number.

Available function keys
[F1 Prev]	Display the previous page of the currently displayed I/O information.
[F2 Next]	Display the next page of the currently displayed I/O information.
[F3 Jump To]	Displays numeric keypad. Enter I/O number with numeric keypad, and press [OK] to move to the target I/O number. The selected I/O number will be highlighted. This can be also selected by using up and down cursor keys on the Remote TP/Virtual TP.
[F4 Dummy Smart]	Set dummy input ON/OFF for the selected I/O number when "Dummy Smart" is checked. Set Smart input ON/OFF for the selected I/O numberwhen the "Smart" is checked.
[F5 Edit]	When pressing the button, numerical keypad appears which enables to edit the numeric value. I/O range to be edited is displayed in the numeric keypad together with currently selected display style.
[F6 Aux]	Display auxiliary functions menu for I/O.
