Reading and Writing Arm Parameter

Arm parameters received from the COBOTTA can be written to a separate file or loaded as arm data.

Reading and Writing Arm Parameter

1

Log in with Programmer level.

2

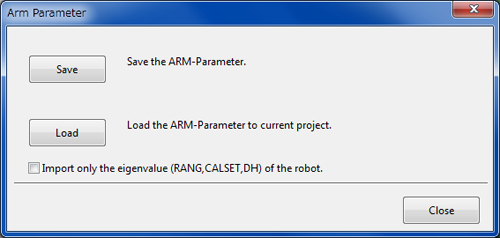

From the menu bar, click Tool, click ARM-Parameter to display Arm Parameter dialog box.

  • Save button
    Write WINCAPSIII project arm parameters to a file.
  • Load button
    Arm data from files below on your PC is uploaded to your current project.
WAM WINCAPSIII arm data format
WPJ Load only arm data from WINCAPSIII projects.

When the check box of "Import only the eigenvalue (RANG, CALSET, DH) of the robot" is checked, only robot's particular position data (such as RANG, CALSET, etc.) are transferred to the current project.
