Trace Logging

Trace logging records the program execution flow and timing in order of command line execution.

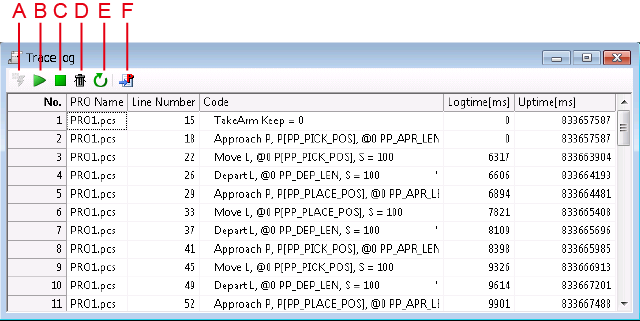

Description of the Drop-down Menu

A: Receive Button

Trace log data is received from the COBOTTA.

B: Start Trace Log Button

This begins trace logging.

C: Stop Trace Log Button

Logs the currently recorded log data.

D: Clear Trace Log Button

Clears the trace log data.

E: Update Trace Log Button

This updates the trace log data simulating.

F: Jump to Source Code Button

This displays the program code for the selected log.

The data recorded is as follows.

Program code

• PRO Name, Line Number
• Code
• Logtime
• Uptime
