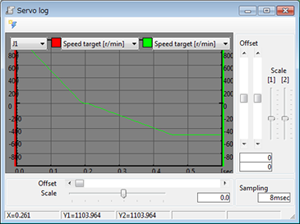

Servo Log

More detailed recording of motor control.

The recording interval is 8 ms.

The following data is logged.

• Motor speed command [r/min]
• Actual motor speed [r/min]
• Torque command [% of rating]
• Position deviation [deg]
• Motor angle target [deg or mm]
• Motor angle [deg or mm]

The recording range can be specified with the program.

The following commands are used.

• SysLog.Ctrl.Clear
• SysLog.Ctrl.Start
• SysLog.Ctrl.Stop
