Program Lock Function

This function prohibits users from editing a program with a password.
Use this function if you want to prevent users from unintended editing of program.

Lock Setting

1

From the [Project window], select a program or folder to be locked.

2

On the [Project] menu, click [Program Lock]-[Lock Set].

3

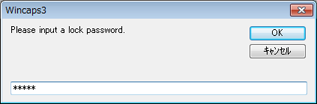

Enter a lock password, and then click [OK].

For password, use single-byte character sets with one to 30 characters.

4

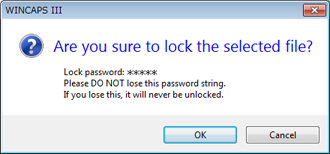

A confirmation dialog box appears. Confirm the password and then click [OK].

5

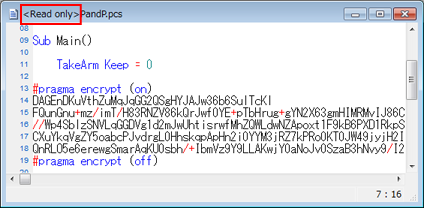

A system message appears.

Unlock Setting

1

From the [Project window], select a program or folder to be unlocked.

2

On the [Project] menu, click [Program Lock]-[Lock Reset].

3

Enter a lock password you have set at the lock setting, and then click [OK].

4

A system message appears.
