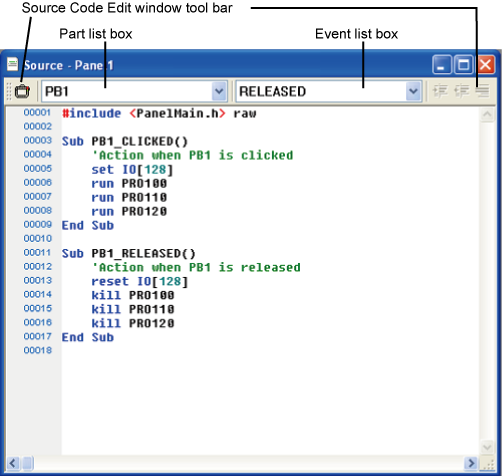

Source Code Edit Window

This window is for assigning action source code to events associated with the parts on the current panel layout.

Source Code Edit Window Tool Bar

	Name	Description
	Layout window	Display the corresponding panel layout.
	Indent	Shift the selected lines one tab position to the right.
	Outdent	Shift the selected lines one tab position to the left.
	Comment out	Comment out the selected lines.
	Undo comment block	Cancel commenting out for the selected lines.
	Bookmark	Toggle bookmark on the current source code line.
	Next bookmark	Move the cursor to the next bookmark.
	Previous bookmark	Move the cursor to the previous bookmark.
	Clear bookmarks	Cancel all bookmark definitions.
	Find and replace	Find the specified string and optionally replace it.

Setting a bookmark on a code line displays a square marker () to its left.

Part List Box

Select the part for which to assign action source code.

Event List Box

This lists the events available for the selected part. Selecting one automatically generates the corresponding skeleton action source code block on the editor screen.

Example: Skeleton action source code block for pressing PB1

Sub PB1_Clicked()
End Sub

Action Source Code Block

Flesh out the skeleton with action source code.

Example: Action source code block for pressing PB1

Sub PB1_Clicked()
  Set IO[128] '  turn I/O variable #128 ON
  Run PRO100 '  run PRO100
End Sub
