Pylon4 Setting

This section explains the setting of Basler GigE camera.
Set IP address, ID and a trigger mode with the pylon IP Configurator.

How to Install

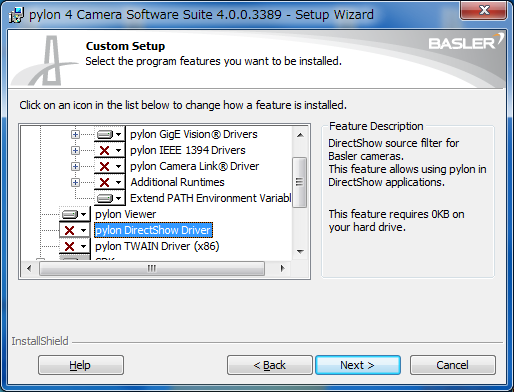

Install Basler tools as follows:

• Tools to be installed
  - pylon GigE Vision Drivers
  - Extend PATH Environment Variable
  - pylon Viewer
• Tools not to be installed
  - pylon DirectShow Driver

Settings of IP Address and ID

1

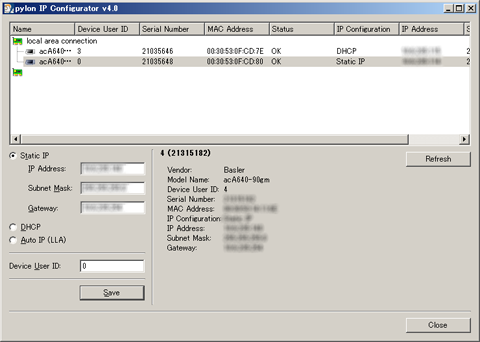

Start the pylon IP Configurator.

2

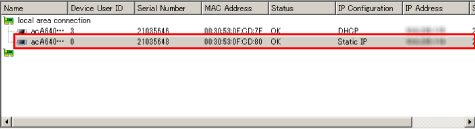

Select a camera that you intend to set IP address and ID.

3

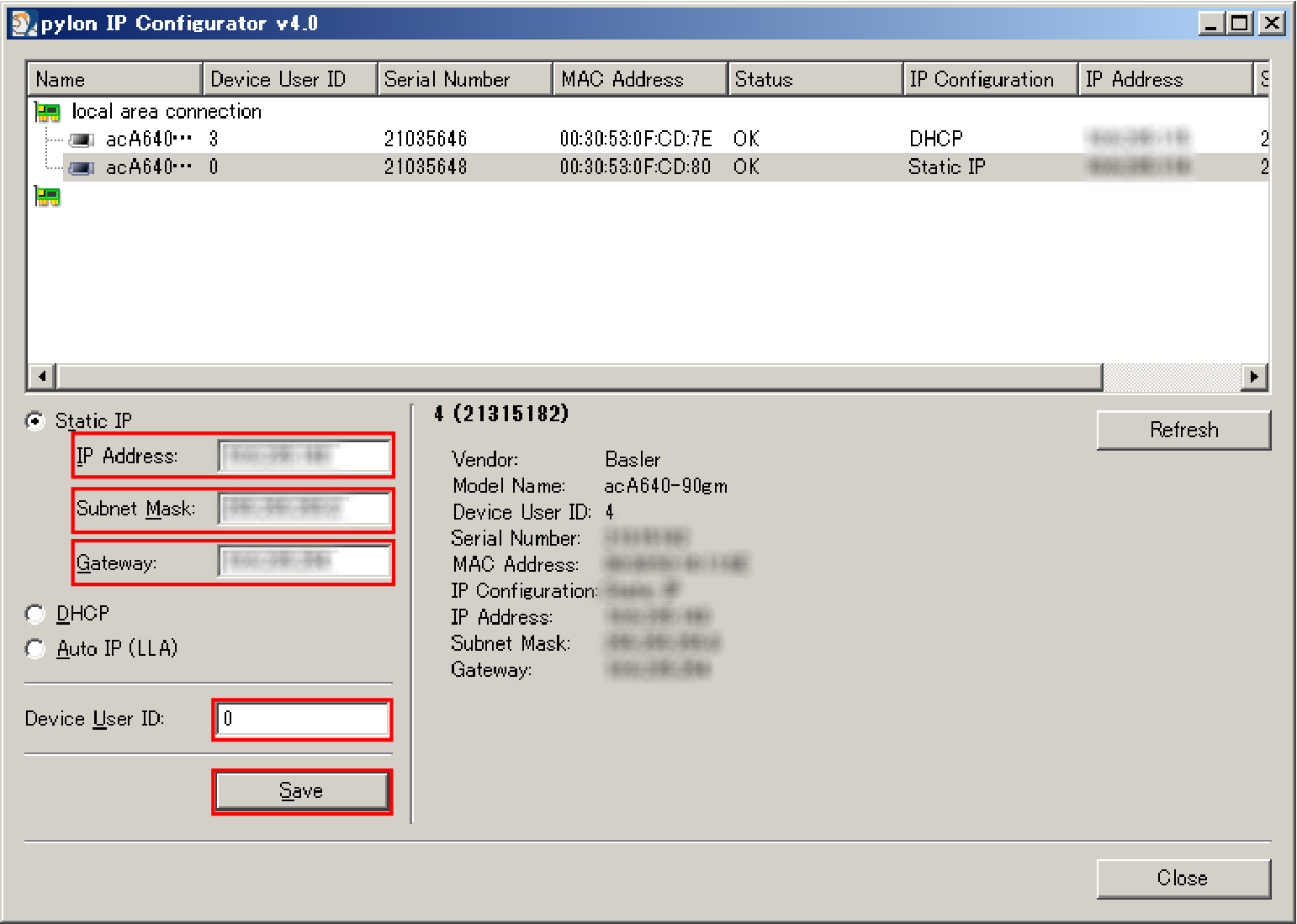

Enter IP Address, Subnet Mask, Gateway and Device User ID, and then click [Save].

Trigger Mode Setting

1

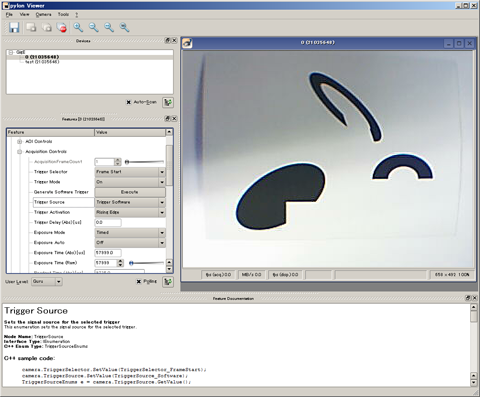

Start the pylon Viewer.

2

Set the User Level to Expert or higher.

3

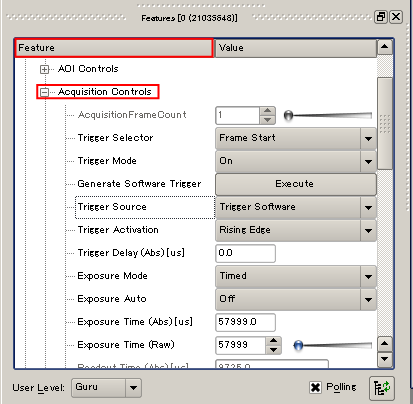

In the Future tab, select Acquisition Controls, and then click + to open the menu.

4

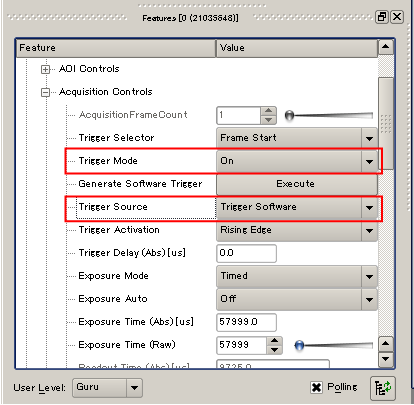

Set the Trigger Mode to ON.
Set Trigger Source according to the mode used.

5

Set other usage conditions. (e.g. shutter, speed and gain)

6

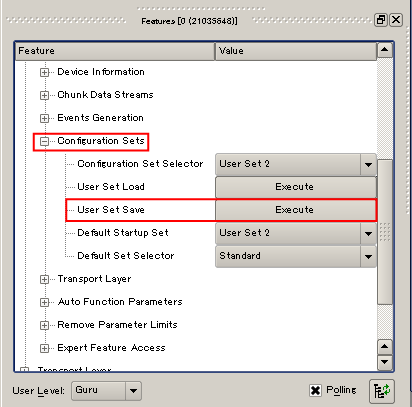

Select a set of items which setting is saved by Configuration Set Selector.
To save the conditions being set, click Execute button under the User Set Save.
The setting will be cancelled unless the Execute button is clicked.
