Disk Information Details Display

Operation path : [F6 Setting] - [F2 System Info] - [Controller tab] - [F4 Disk Info details]

Display the information of COBOTTA archived storage.(Auxiliary storage device to retain data even the power supply of the COBOTTA turns off.)

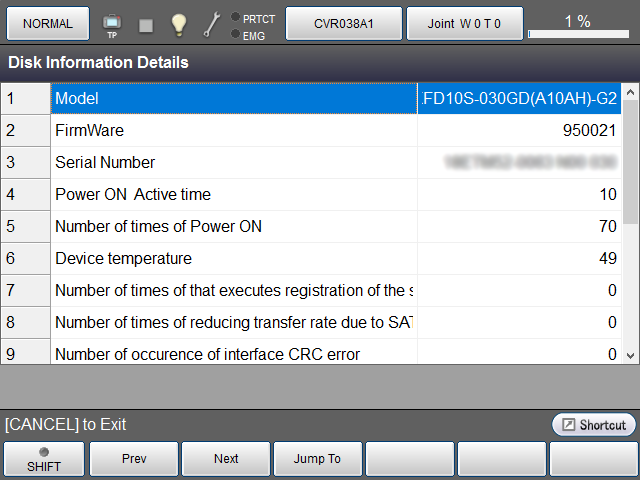

Press [F4 Disk Info details] to display the following [Disk Information Details] window.

Available function keys
[F1 Prev]	Display the previous page of the currently displayed contents.
[F2 Next]	Display the next page of the currently displayed contents.
[F3 Jump To]	Display numeric keypad. Enter S.M.A.R.T. info. number with numeric keypad, and press [OK] to move to the selected number. The selected number is highlighted. To select a number, up and down cursor keys are also available.

Available function keys

[F1 Prev]

Display the previous page of the currently displayed contents.

[F2 Next]

Display the next page of the currently displayed contents.

[F3 Jump To]

Display numeric keypad.

Enter S.M.A.R.T. info. number with numeric keypad, and press [OK] to move to the selected number.
The selected number is highlighted. To select a number, up and down cursor keys are also available.
