ID : 4120
Displaying Setting Menu
Operation path: Top window - [F6 Setting]
Display the setting menu.

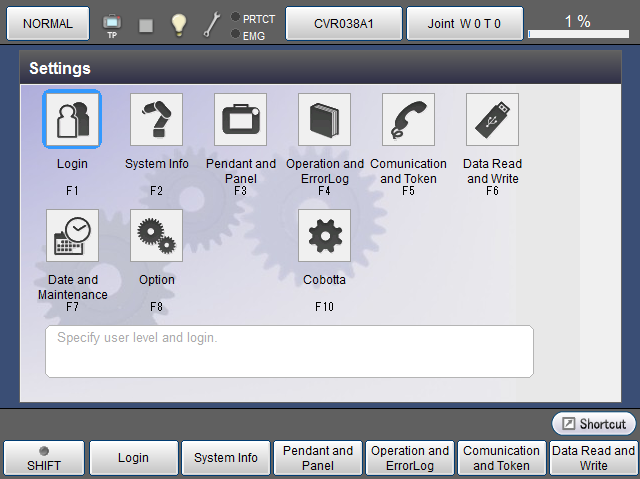

Press [F6 Setting] to display the following [Settings] window.
| Available function keys | |
|---|---|
| [F1 Login] | Switch the user level. |
| [F2 System Info] | Display information on COBOTTA, including the software version and running time. Switch information on "general", "robot", "controller" using tabs. |
| [F3 Pendant and Panel] | Configure settings associated with the display, including language and character size, as well as panel settings. |
| [F4 Operation and Error Log] | Display operation and error logs. |
| [F5 Communication and Token] | Configure settings associated with communication, including IP Address setting, as well as the executable token. |
| [F6 Data Read and Write] | Read and write data to and from USB. |
| [F7 Date and Maintenance] | Set date and clock, and the next maintenance schedule for the battery and robot. |
| [F8 Option] | Add optional functions. |
|
[F10 Cobotta]
(Ver.2.5.* or higher) |
Configures settings associated with COBOTTA safety functions. |
ID : 4120
