ID : 9695
Displaying the Estimated Load Factor
Operation path : [F2 Arm] - [F3 Servo State] - [Estimate tab]
Display the estimated load factor for each Joint (from Joint 1 to Joint 8) by using the results of the control log.

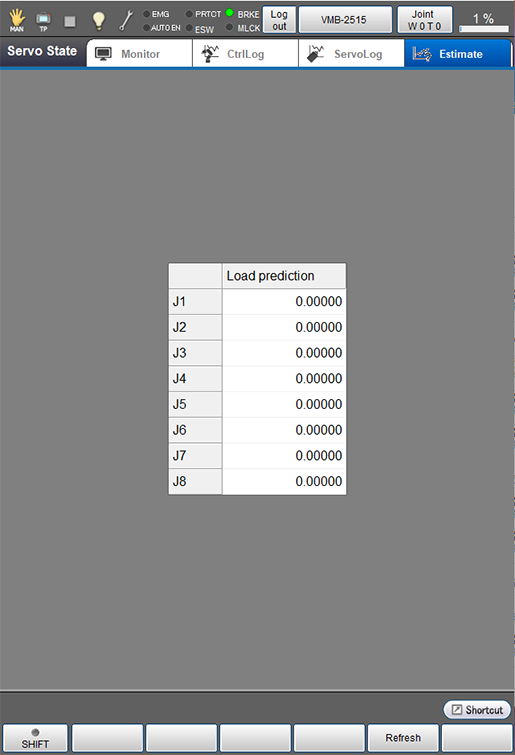

Press [Estimate tab] to display the following [Estimated load factor] window.
| Available function keys | |
|---|---|
| [F5 Refresh] | Updates to the latest information on the estimated load factor display window of the smart TP.
This key appears only when the currently logged-in account is granted user permission for "Programming" or "Maintenance". |
To display the load prediction, you need to record the control log at least one cycle in advance.
