Mini-Pendant

The mini-pendant is an entry/operation device for operating the robot manually, starting programs, and teaching. It has no programming function.

Using the mini-pendant together with WINCAPSIII or WINCAPSIII Light enables efficient programming and teaching.

Mini-Pendant Functions

For instructions on how to operate the mini-pendant.

Teaching

This function allows you to store the robot arm position (limited to editing of J variables, P variables and T variables). You can check edited programs in running them step by step.

Operating the robot

This function controls motor power on/off, starts/stops automatic operation, and enables StepStart and manual operation.

Displaying

This function displays the current robot arm position, running program number, ongoing step number or error codes.

Names of Mini-Pendant Components

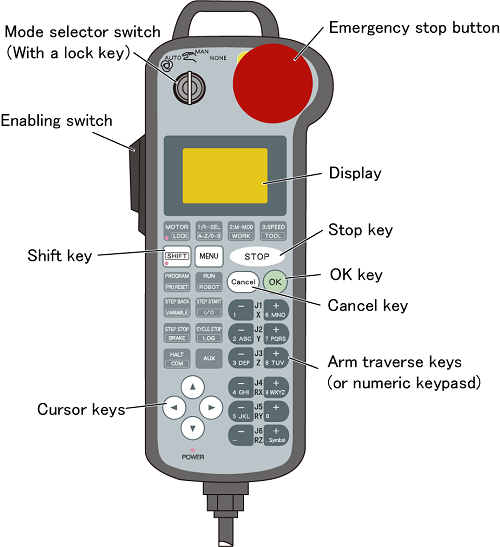

The figure below shows the names of the mini-pendant components.
