Robot Lifting by Means of Forklift Truck (Fork Unit)
| Lifting equipment | Forklift with lifting power suitable for the load to be lifted. |
|---|---|
| Equipment/Instrument to use |
|
Please note the following item before transport.
- Move each axis to the angle of the proper transport posture.
Please note the following items when transporting.

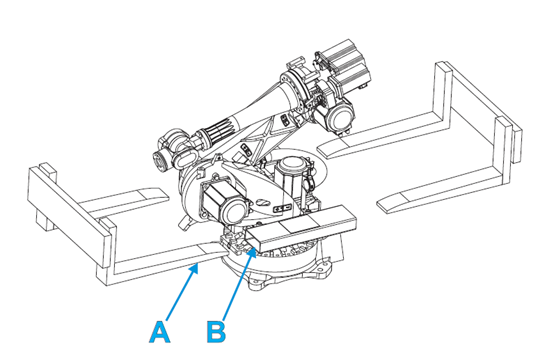

- Arrange the distance between the center of the forks A so that it is about 765 mm.
- Make sure that the ends of the forks A come out from the opposite side of the attachments for forklift B.
- Lift the robot carefully and move it close to the installation site.

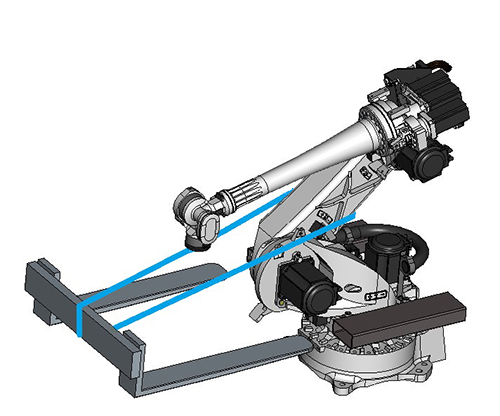

- Be careful not to apply excessive vibration and impact to the robot. Also, fix the robot with a rope as shown in the figure below to prevent the robot from overturning.
Attachment for Forklift
Components

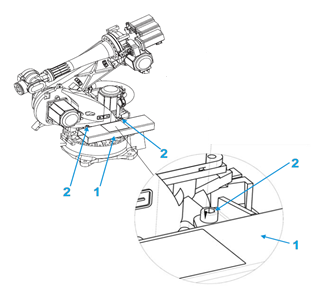

- Attachment for forklift (quantity: 2)
- Hexagon socket-head bolt M20 × 40mm, strength class: 12.9 (quantity: 4)
Mounting Procedure
1
Place the robot on the floor.
2
Mount the attachment for forklift on the robot base part.
3
Tighten two fixing bolts with the following tightening torque.
Hexagon socket-head bolt (total: 2 pieces) |
M20 × 40 |
|---|---|
| Tightening torque | 674Nm |
4
Also mount it to the opposite side in the same way.
This completes mounting of the attachment for forklift.
