ID : 10801
Advanced Settings of Monitoring

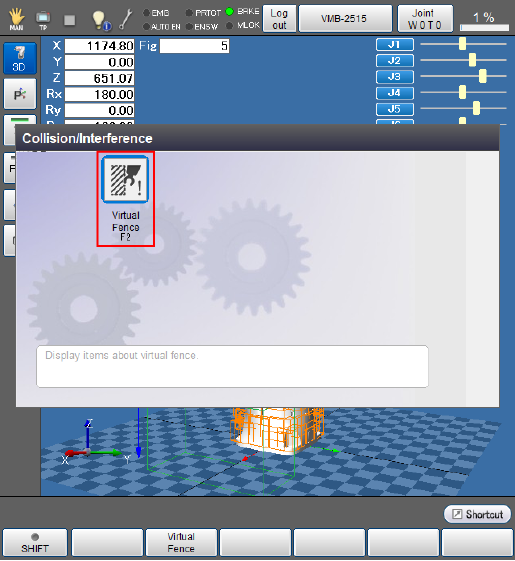

Operation path : Basic window - [F2 Arm] - [F6 Aux] - [F2 Collision/Interference]

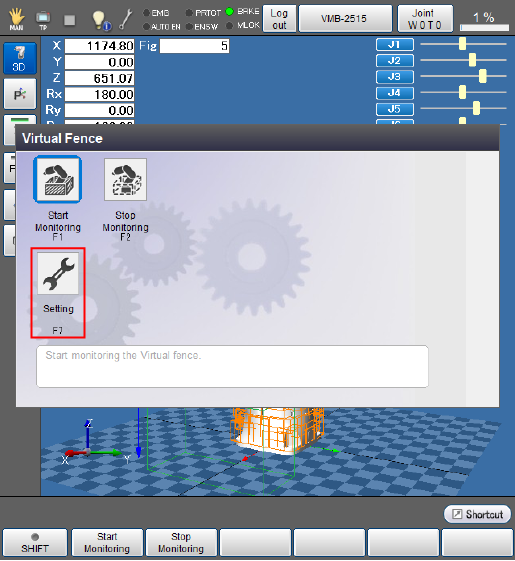

Press [F2 Virtual fence] to open the screen.

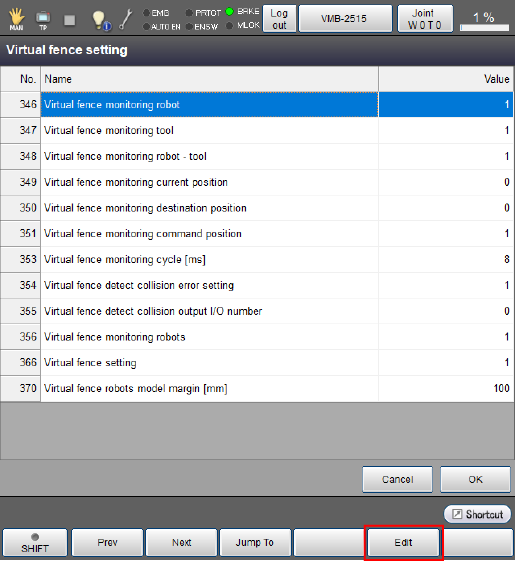

Perform the monitoring setting. Press [F7 Setting]. Once the parameter list appears, enable [366 : Virtual fence setting]. Change the default values of other parameters, if necessary. To change a value, press [F5 Edit].
Parameter List
The robot stops when an error occurs. When [354 : Virtual fence detect collision error setting] is not enabled, it does not stop even if collision is detected.
| Number | Item | Unit | Default | Description |
|---|---|---|---|---|
| 346 | Virtual fence monitoring robot | - | 1 | Monitor robot and equipment 0: Disable 1: Enable |
| 347 | Virtual fence monitoring tool | - | 1 | Monitor tool and equipment 0: Disable 1: Enable |
| 348 | Virtual fence monitoring robot - tool | - | 1 | Monitor robot and tool 0: Disable 1: Enable |
| 349 | Virtual fence monitoring current position | - | 0 | Monitor the current value 0: Disable 1: Enable |
| 350 | Virtual fence monitoring destination position | - | 0 | Monitor the target position With set to 1: Enable, decide whether or not the robot collides with the target on its startup. |
| 351 | Virtual fence monitoring command position | - | 1 | Monitor the command position With set to 1: Enable, decide whether or not the robot collides with the target while running. |
| 353 | Virtual fence monitoring cycle | ms | 8 | Set the monitoring cycle. |
| 354 | Virtual fence detect collision error setting | - | 1 | Specify whether to issue an error at the collision detection. 0: Disable 1: Enable |
| 355 | Virtual fence detect collision output I/O number | - | 0 | Specify I/O number to output (available only for the collision detection of the current value). |
| 366 | Virtual fence setting | - | 0 | Specify the virtual fence setting. The setting becomes effective after reboot. |
If the monitoring cycle causes timeout, firstly reduce the number of monitoring models. If there is no effect for that, set the parameter [353: Virtual fence monitoring cycle] longer than 8 ms.
ID : 10801
