Adding Action Source Code

A Source Code Edit window is for specifying the events to take in response to a Clicked, Released, or other state change event associated with the corresponding part on the panel layout.

Writing Action Source Code

Use following methods to add the action source code.

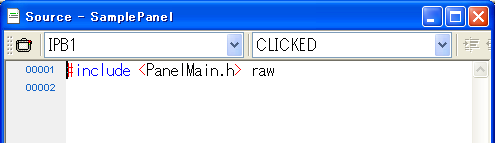

1 Open the Source Code Edit Window

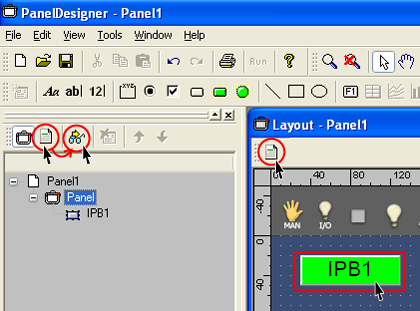

Use one of the following methods to open the Source Code Edit window for the part.

• Double-click on the part in the Layout window.
• Select the part in the Layout window and press the Display layout button.
• Select the panel layout on the Parts Tree pane, make sure that the Source form button is pressed, and press the Display panel button.

2 Select the Event

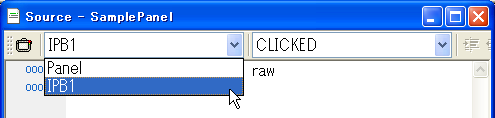

Click the part list box at the top of the Source Code Edit window then select the part which you would like to add the action source code.

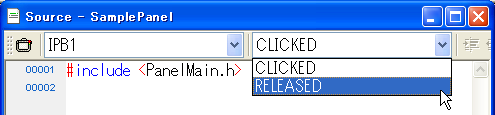

Select the action source code from the Event list box.

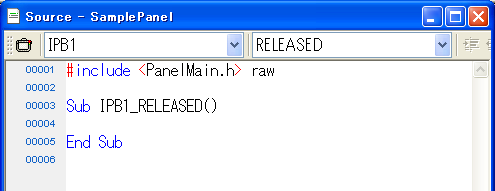

The event procedure is added.

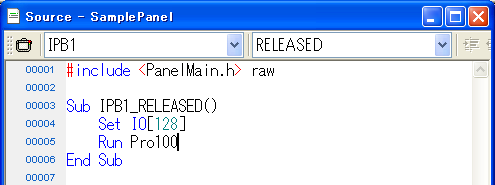

3 Add Action Source Code

Write the added processing in the procedure.

The Procedure of the Event

The procedure of the event is named as "Control name_event".

If changing the procedure name, the procedure is not carried out when event execution.

Sub Control name_event
	describe desired action
End Sub
