ID : 7122

PRE-CHECK of the Program

This process executes PRE-CHECK of programs. A PRE-CHECK-enabled program is compiled at the time of COBOTTA startup. Since the program is pre-checked, it performs quicker only at the first time of COBOTTA startup. However, if there are too many PRE-CHECK-enabled programs, it takes long time to activate the COBOTTA.

PRE-CHECK is effective only for program which is executable independently.
Programs used only when called from other programs do not need to enable PRE-CHECK, because these programs do not require individual compiling.

1

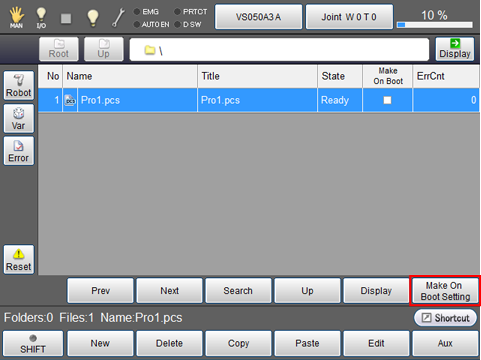

Select a program to be checked, then press [Make On Boot Setting] in the Program List window.

2

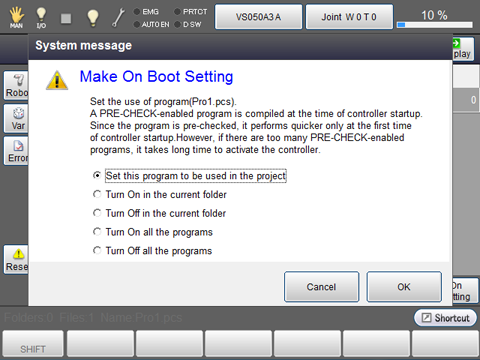

System message appears.

Select one of the following options then press [OK].

  • Set this program to be used in the project
  • Turn On in the current folder
  • Turn Off in the current folder
  • Turn ON all the programs
  • Turn Off all the programs

In this example, select "Set this program to be used in the project".

3

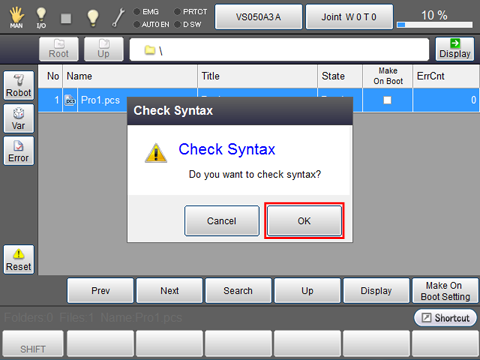

[Check Syntax] window appears. Press [OK].

4

[Make On Boot] is checked.

ID : 7122
