Packed Items
In this section, the packed items are grouped as follows:
Standard packed items are common to all orders and should be checked first.
Following that, check that you have received all optional items you have selected.
Standard Packed Items

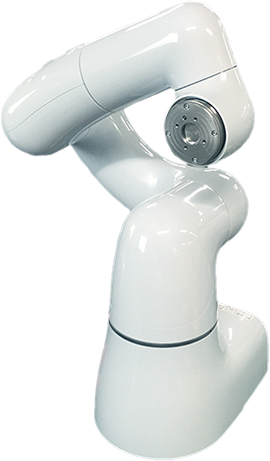

| COBOTTA Unit | Emergency stop box |
|---|---|
 |
 |
| Emergency stop box holder | |
 |
|
| Emergency stop box holder for tablet | |
 |
|
| O-rings for USB connectors | Dummy connector (I/O) |
|
O-rings for USB connectors will be packed in a small bag and enclosed in a package box of COBOTTA at the factory before shipment.
|
 |

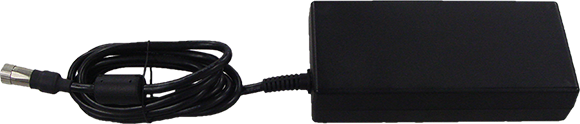

| AC adapter | |
 |
|
| Manual disk | Quick setup guide |
 |
 |
| COBOTTA software DVD | |
|
|
Options
AC cable (required)
| AC cable |
|---|
|
The plug of the AC cable will vary according to the AC cable type (country) you selected.
The figure above shows an example of an AC cable provided for use in Japan. |

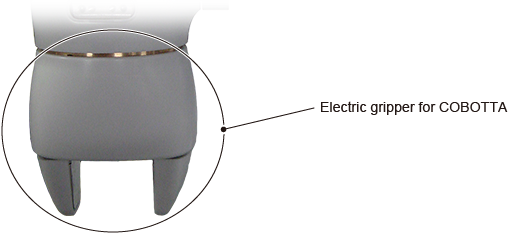

When Electric Gripper Option for COBOTTA is Selected
| Electric gripper for COBOTTA |
|---|
|
The electric gripper for COBOTTA will be installed at the factory before shipment.
|

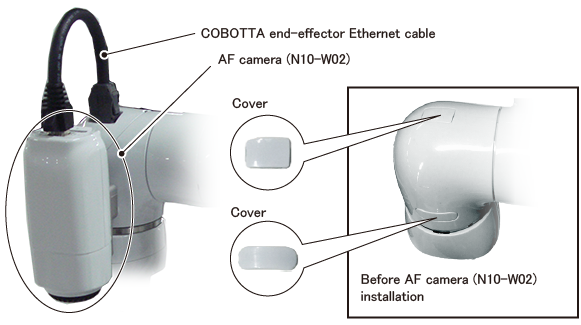

When AF Camera (N10-W02) Option is Selected
| AF camera (N10-W02) / COBOTTA end-effector Ethernet cable / Covers (2 pieces) |
|---|
|
AF camera (N10-W02) will be installed at the factory before shipment. Covers (2 pieces) will be packed in a small bag and enclosed in a package box of COBOTTA at the factory before shipment.
|

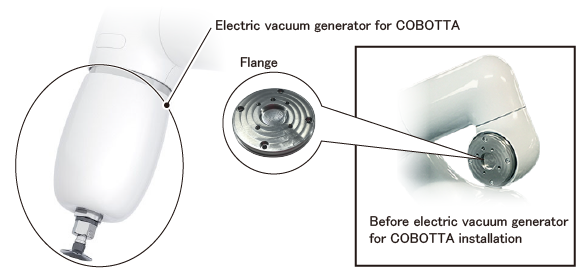

When Electric Vacuum Generator for COBOTTA Option is Selected
| Electric vacuum generator for COBOTTA / Flange |
|---|
|
The electric vacuum generator for COBOTTA will be installed at the factory before shipment.
|
When Mini I/O Cable Option is Selected

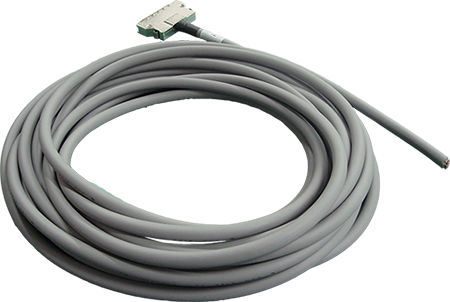

| Mini I/O cable |
|---|
|
Mini I/O cable will be packed in a different package box from the box of COBOTTA at the factory before shipment.
|
When Field network Interface Module for COBOTTA Option is Selected

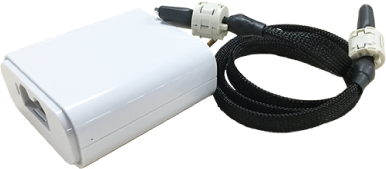

| Field network interface module for COBOTTA |
|---|
|
Field network interface module for COBOTTA will be packed in a different package box from the box of COBOTTA at the factory before shipment.
|
When VGA Junction Cable Option is Selected
| VGA junction cable |
|---|
|
VGA junction cable will be packed in a different package box from the box of COBOTTA at the factory before shipment.
|
