Auto Measuring Mass of Payload
1

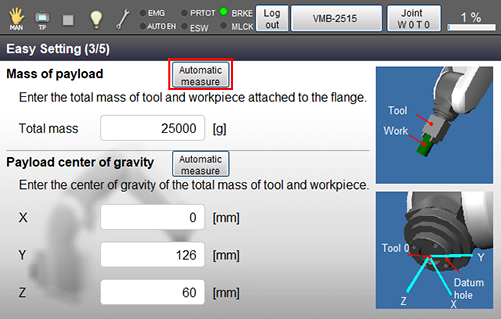

Press [Automatic measure] button in the window of [Easy Setting] - [Mass of payload].

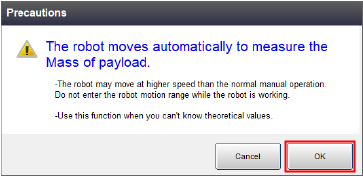

Information of how a robot performs and caution about measuring will be shown in the window of Payload Estimation.
After confirming the message, press [OK].

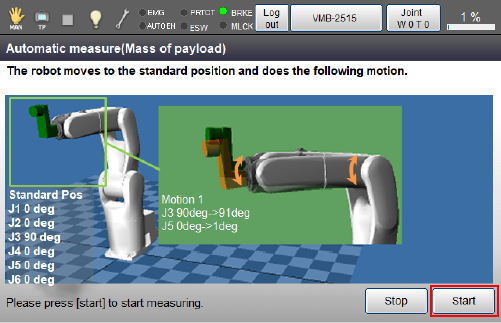

Automatic measure window is displayed.
Press [Start].
If the value of mass of payload (calculated value) is sure, use that value.
2
While keep pressing down the enabling switch, tap the [MOTOR] button to turn the motor on, and then keep pressing the [FWD] key.

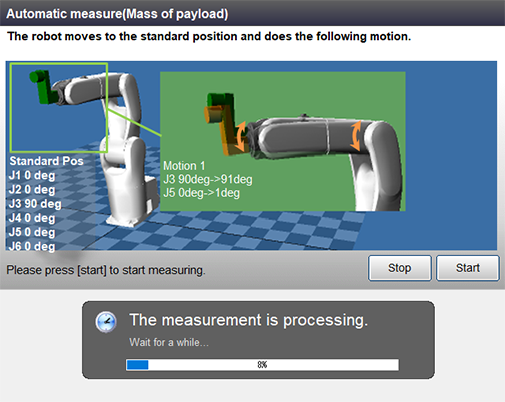

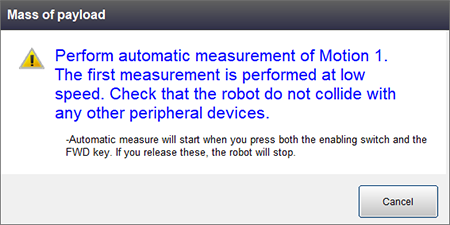

Measurement of the motion at lower speed is performed.
- Make sure that the robot's hand and/or other things won't interference with any other equipment.
- Do not enter the robot motion range because the robot may move at higher speed than the normal manual operation.
Keep pressing down the enabling switch and the [FWD] key until the measurement completes.

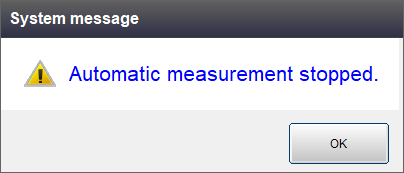

If either the enabling switch or the [FWD] key is released during measurement, the measurement will be interrupted.
3

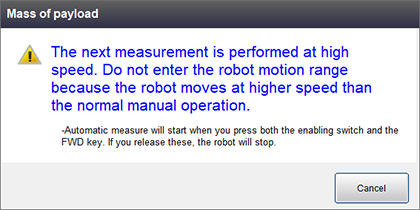

Once the measurement of the motion at lower speed is finished, the motion at higher speed will be measured.
Keep pressing down the enabling switch and the [FWD] key.
Do not enter the robot motion range because the robot moves at higher speed than the normal manual operation.
4
If the measurement value locates inside of the maximum allowable range, measuring is completed.

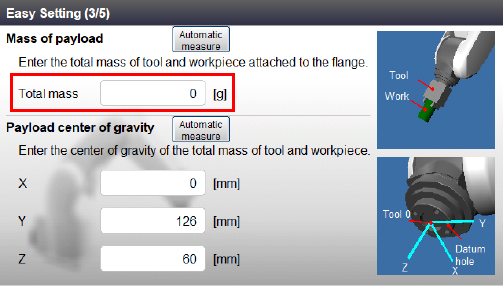

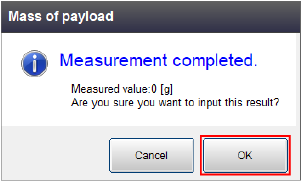

Press [OK] to return the window of [Easy Setting]. The measured value of mass of payload is inputted.
Ensure that if pressed "Cancel" in the window of Automatic measurement and the window returns to [Easy Setting] - [Mass of payload], the measurement value cannot be inputted.
