Displaying Program List Window (Automatic Mode)

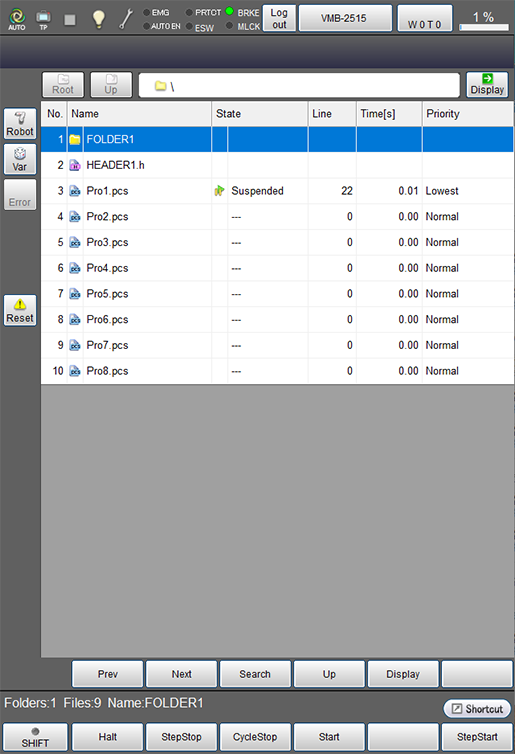

Press [F1 Program] on the basic screen of automatic mode to display the following program list window.
| Available function keys | |
|---|---|
| [F1 Halt] (*) | Halt the program being executed. |
| [F2 StepStop] (*) | Execute step stop of the program being executed. |
| [F3 CycleStop] (*) | Execute cycle stop of the program being executed. |
| [F4 Start] (*) | Execute single-cycle start or continuous start of the selected program. |
| [F6 StepStart] | Execute step feed start of the selected program. |
| [F7 Reset] (*) | [Program reset] window opens. Select either "Only this program" or "All programs", and press [OK] to reset the target program. |
| [F9 Priority] (*) | System message to set the priority will be displayed. Select either of lowest, low, normal, high, and highest, and press [OK] to change the priority of the selected program. |
| [F10 Continue Start] (*) | Execute continue start for a "continue-stopped" program. |
| [F11 Display] | Display contents of selected folders and files. For details, refer to "Displaying Folder or Contents of the File". |
(*) This key is available only when the currently logged-in account is granted user permission for "Programming".
| Keys other than function keys | |
|---|---|
| Robot | Displays 3D image of the robot during the machine lock. For information about operation keys, refer to " Displaying Current Position Information and 3D Image of Robot". Button turns blue while robot button is pressed. |
| Var | Display a static variable monitoring window. For details, refer to "Static Variables Monitoring Function". |
| Reset | [Program reset] window opens. Select either "Only this program" or "All programs", and press [OK] to reset the target program. |
| Root | Move to the highest folder hierarchy. |
| Up | Move to the folder hierarchy that is one higher than the current one. |
| Path | Enter path in the displayed file path input screen, and press [OK] to move to the specified file path. |
| Display | Display contents of selected folders and files. |
| Prev | Display the previous page of the currently displayed program list. |
| Next | Display the next page of the currently displayed program list. |
| Search | Display file name search window. Enter file name, and press [OK] to search the entered file name. |
| Up | Move to the folder hierarchy that is one higher than the current one. |
| Display | Display contents of selected folders and files. |
