Solenoid Valve Specifications
Valves
| Switching system | 2-position, Double Solenoids 3-position, Exhaust Center Solenoids 3-position, Closed Center Solenoids |
|---|---|
| Applicable fluid | Air |
| Operating system | Pilot type |
| Effective cross section (Cv value) |
|
| Lubrication | Oilless |
| Operating pressure range | 0.2 to 0.7 MPa * |
| Response time |
|
| Maximum operating frequency |
|
| Ambient temperature | －5 to 50℃ (No dew condensation allowed. When dry air is used.) |
* The air source to be connected to the robot unit should be used within the operating pressure range from 0.20 to 0.39 MPa.
Solenoids
| Operating voltage | 24 V +/- 10 % |
|---|---|
| Power consumption (current) | 0.4 W (17 mA) |
| Surge voltage protection circuit | Varistor |

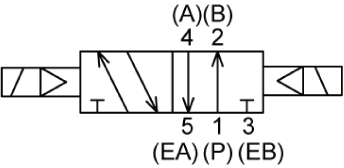

Switching System: 2-Position, Double Solenoid
When both solenoids A and B are deenergized, the valve holds its position.
| A, B | Air outlet to tools |
|---|---|
| P | Air inlet from AIR1 |
| EA, EB | To exhaust ports For clean room type, these are connected to "VALVE-OUT" (AIR2) of a connector panel. |

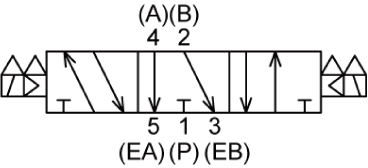

Switching System: 3-Position, Exhaust Center Solenoid
When both solenoids A and B are deenergized or when the power is OFF, the valve is in the center position to exhaust the residual pressure of solenoids A and B.

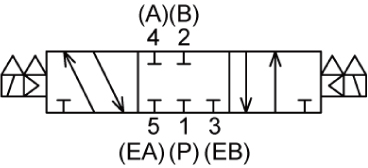

Switching System: 3-Position, Closed Center Solenoid
When both solenoids A and B are deenergized or when the power is OFF, the valve is in the center position to hold the residual pressure of solenoids A and B.
In preparation for maintenances or an emergency, install an equipment to release the residual pressure between the hand and the valve by customer side.
