Threaded Screw Holes for Wiring and Piping
The robot unit has internal threads to secure wiring and piping to itself.

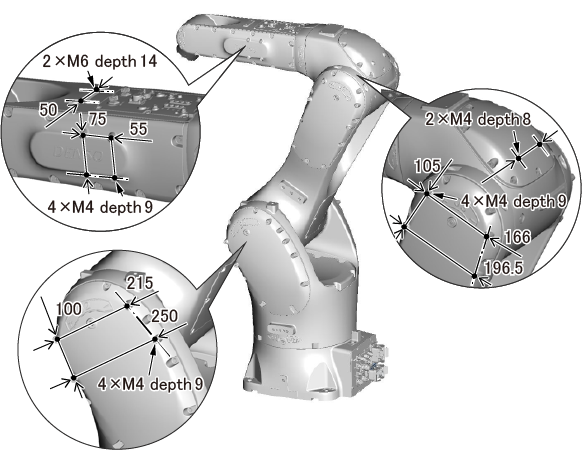

Screw Hole Position 1

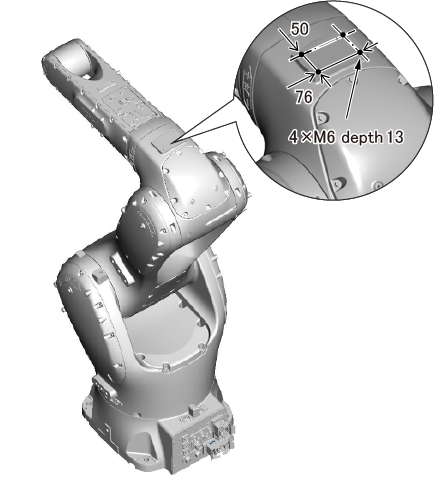

Screw Hole Position 2
Screw Hole Position 3
