TrackCurStartArea
Function
Return the currently selected tracking range with a variant type data array.
Syntax
TrackCurStartArea(Conveyor number )
Guaranteed Entry
- Conveyor number
-
Specify the conveyor number (1 or 2) to be used by integer type data.
Return Value

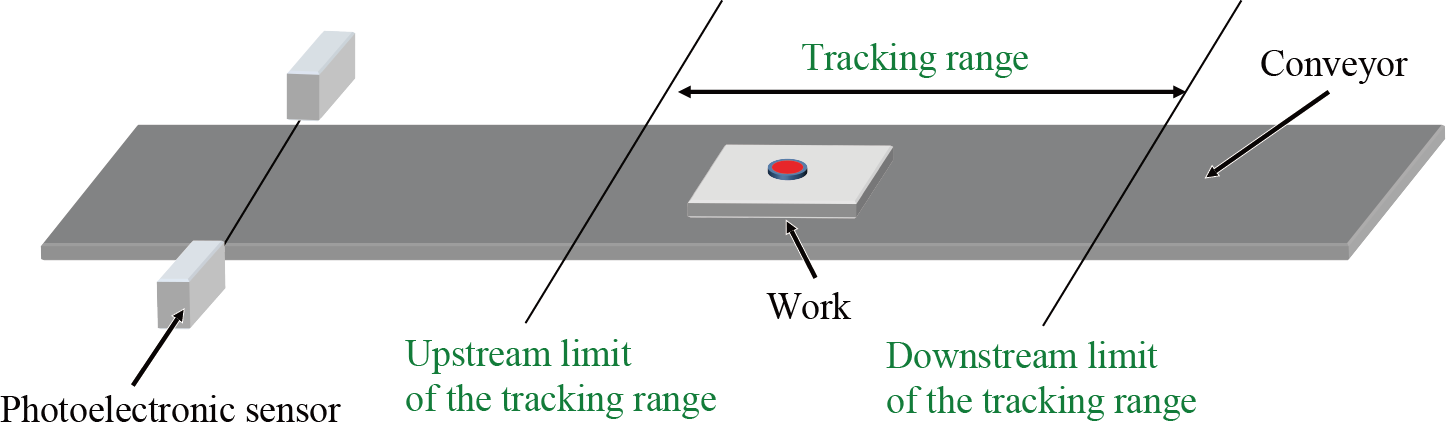

Return the currently selected tracking range with a variant type data array.
| Element | Description |
|---|---|
| 1 | Upstream limit of the tracking range (Integer type data) |
| 2 | Downstream limit of the tracking range (Integer type data) |
Related Terms
TrackInRange, TrackStandByPos, TrackStartArea, Commands for Conveyor Tracking
Attention
- This is the conveyor tracking operation-dedicated command.
Example
-
