Displaying and Changing Data Communication Settings Screen (For COM Selection)
Operation path : [F6 Setting] - [F5 Communication and Token] - [F3 Data Communication] - [Select COM for Device] - [F5 Edit]
Change data communication setting for COM device.

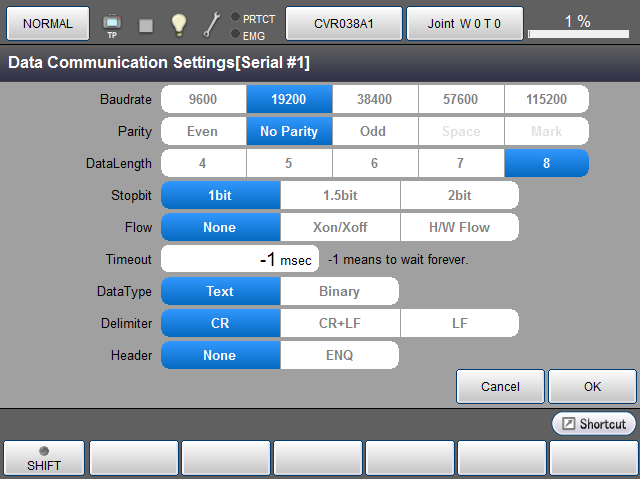

Select COM for device, and press [F5 Edit] to display the following [Data Communication Settings] window.
The currently selected item will be highlighted.
This setting item can be selected by directly touching the screen. Select the item to change in each item, and press [OK] in [Data Communication Settings] window to confirm the changed setting.
| Item | Description |
|---|---|
| Baud rate | Specify transfer bit count per second. |
| Parity | Specify the type of parity for error check. |
| Data length | Specify the number of bits stored in a unit of data. |
| Stopbit | Specify the length of stopbit. |
| Flow | Specify the type of flow control. |
| Timeout | Specify the time-out period that limits the allowable waiting time of the server response by milliseconds. This should be "infinite waiting" if "-1" is set. |
| DataType | Select Text or Binary. |
| Delimiter | When DataType is Text, specify a delimiter sign which delimits communication text. Choose one from "CR(0x0D)", "CR+LF"(0x0D 0x0A)" or "LF(0x0A)". |
| Header | When DataType is Binary, specify a header for communication.Choose "None" or "ENQ"(0x05). |
