Displaying the Communication and Executable Token Menu

Operation path : [F6 Setting] - [F5 Communication and Token]

Perform settings associated with executable token and communication.

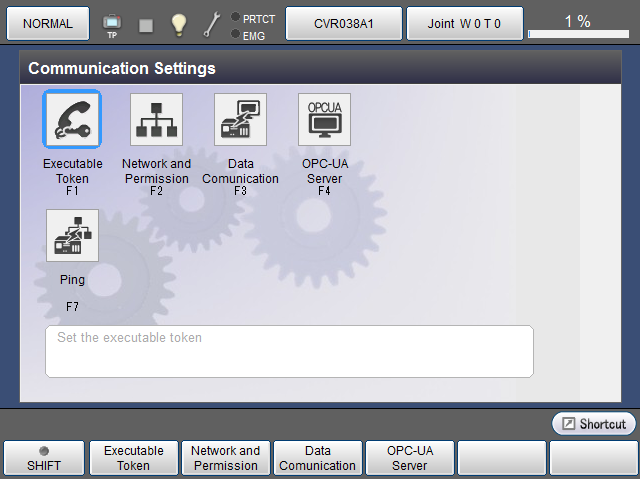

Press [F5 Communication and Token] to display the following [Communication Settings] window.

Available function keys
[F1 Executable Token]	Set the executable token.
[F2 Network and Permission]	Perform settings associated with communication between WINCAPSIII and COBOTTA.
[F3 Data Communication]	Perform settings associated with data communication.
[F4 OPC-UA Server]	Perform settings associated with OPC-UA server
[F7 Ping]	Send and receive data packet, and then display the result of the ping test.
